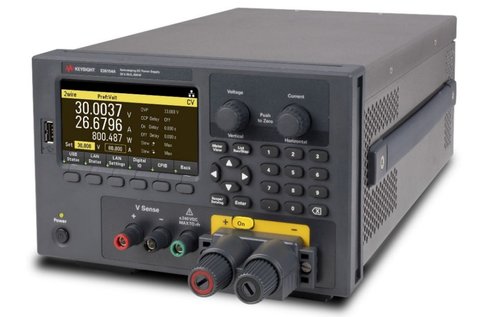

Keysight E36154A 800 W Autoranging Benchtop Power Supply, 30 V, 80 A

Key Specifications

Output Rating- 800 W

  • Output 1: 0 to 30 V, 0 to 80 A

Programming Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA

Ripple & Noise (20 Hz to 10 MHz)

  • Normal mode Voltage: <50 mV p-p
  • Normal-mode Voltage: <5 mV rms

Readback Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA
  • Low Range Current: 0.1% + 250 uA

Documents and Accessories:

Product Number:

E36154A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The Keysight E36150 Series autoranging benchtop DC power supply features two models with 800W power on a single channel output. The E36150 Series can supply up to 60V and 80A and provide plenty of usable power to meet your testing needs. The newly featured detachable front binding connection is designed to withstand its maximum current output of 80A while being fully compliant with the International Electrotechnical Commission (IEC) 61010 safety requirements.

The E36150 Series also provides advanced characterization and power simulation capabilities, including volt- and current-meter, data logging, Scope View, and arbitrary waveform generator (AWG). Feature-packed to deliver high performance, the E36150 Series provides a one-box solution that eliminates the demand of having to meet the requirements of multiple instruments. These factors help you save time and avoid complex setups.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

The Keysight E36150 Series autoranging benchtop DC power supply features two models with 800W power on a single channel output. The E36150 Series can supply up to 60V and 80A and provide plenty of usable power to meet your testing needs. The newly featured detachable front binding connection is designed to withstand its maximum current output of 80A while being fully compliant with the International Electrotechnical Commission (IEC) 61010 safety requirements.

The E36150 Series also provides advanced characterization and power simulation capabilities, including volt- and current-meter, data logging, Scope View, and arbitrary waveform generator (AWG). Feature-packed to deliver high performance, the E36150 Series provides a one-box solution that eliminates the demand of having to meet the requirements of multiple instruments. These factors help you save time and avoid complex setups.
