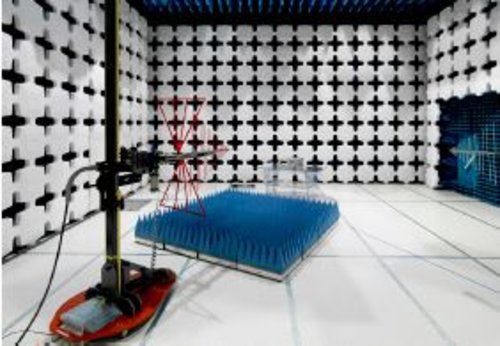

ETS-FACT™ 5 Chambers

26 MHz to 40 GHz Frequency Range

Full Compliance Testing for Radiated Emissions:

  • ANSI C63.4
  • FCC Parts 15 and 18
  • EN 50147-2
  • CISPR 11 / EN55011
  • CISPR 16 / EN55016
  • CISPR 22 / EN55022
  • CISPR 32 / EN55032
  • VCCI V-3 / 2003.04
  • SAE J551
  • SAE J1113

(Requires Chamber Modification to Accommodate Full Vehicle)

Full Compliance Testing for Radiated Immunity:

  • IEC 61000-4-3/EN61000-4-3
  • SAE J551
  • SAE J-1113

Eligible for FCC 3m Class B Facility Filing

Available NSA Performance Options (May Require Chamber Modifications):

  • Standard ± 4.0 dB
  • Standard Plus ± 3.5 dB
  • Premium ± 3.0 dB

Available as a Turnkey Package:

  • Chamber
  • Tower
  • Turntable
  • Antennas
  • nstrumentation
  • Software

Product Number:

ETS-FACT5

Manufacturer:

ETS-Lindgren

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

ETS-Lindgrens FACT™ 5 Chambers offer semi-anechoic radiated emissions (RE) and fully anechoic radiated immunity (RI) compliance test capability for most international EMC compliance regulations. FACT 5 Chambers offer the ability to perform RE testing at a 5-meter distance while preserving the ability to perform full compliance testing of applicable 3-meter standards. Results obtained with 5-meter distance have better correlation to those obtained at a 10-meter distance than the ones measured at 3-meter distance.

Performance

ETS-Lindgren FACT 5 chambers achieve their broadband performance using a unique arrangement of hybrid and ferrite tile absorber. The design was modeled using the proprietary numerical electromagnetic software responsible for creating chambers that set new standards for anechoic performance.

Radiated Emissions Testing

ETS-Lindgrens FACT 5 chambers are designed to provide customers with more standardized solutions for different quiet zone diameters and performance options. This will provide users more flexibility to choose which solution works best for their individual needs. The available quiet zone sizes are available up to 3.0 meters in diameter.

ETS-Lindgrens FACT 5 chambers can be used to perform full compliance testing for ANSI C63.4, FCC Parts 15 and 18, EN 50147-2, CISPR 11 / EN 55011, CISPR 16 / EN55016, CISPR 22 / EN55022, CISPR 32 / EN55032, VCCI V-3/2003.04, SAE J551 and SAE J1113. ETS-Lindgren guarantees that the performance of Normalized Site Attenuation (NSA) testing according to ANSI C63.4 with 5-meter test distance, is ± 4.0 dB for STANDARD chamber, ± 3.5 dB for STANDARD PLUS chamber and ± 3.0 dB for PREMIUM chamber over the frequency range of 30 MHz to 1 GHz. The guaranteed performance for Site VSWR (sVSWR) test per CISPR 16-1-4 (ANSI C63.4) for frequency range of 1 GHz to 18 GHz is < 6.0 dB, regardless which performance option is selected below 1 GHz.

Radiated Immunity Testing

ETS-Lindgrens FACT 5 chambers can also be used to perform full compliance testing for IEC 61000-4-3/ EN61000-4-3, SAE J-551 requirements. At 3-meter test distance lengths, Field Uniformity (FU) of 0 - 6 dB can be achieved over the frequency range of 26 MHz to 18 GHz. The test aperture for FU is a vertical plane of 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane, following the field uniformity test procedure of IEC 61000-4-3. Additionally, used absorber material can safely withstand continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m. This safely exceeds the field intensity requirements of commercial RI tests.

Optional Turnkey Systems

ETS-Lindgren can supply a fully integrated test system for your needs and with ETS-Lindgren, there is no need to deal with multiple vendors or incompatible hardware issues. With ETS-Lindgren, you work alongside a single, accountable partner with a proven track record of success. At systems level, our integrated RF measurement solutions are specifically designed to meet the requirements of a particular test standards. Our objective is always the same when we are designing the test system: listen carefully to our clients requirements, and then respond with proven solutions that minimize risk and assure success.

Turnkey Systems

ETS-Lindgren is an integrated manufacturer producing such well-known brands as ETS-Lindgren absorber, Series 81 and ETS-Euroshield shielding and RF doors, ETS-Lindgren antennas, towers, turntables, and test accessories. All of our products are designed to work together for maximum efficiency and performance.'
