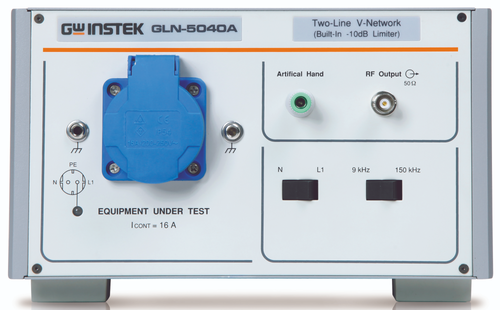

GW-INSTEK GLN-5040A Two Line V-Network
GLN-5040A Two-Line V-Network(LISN) that met CISPR16-1-2:2006 standard is a required product for EMI conduction testing.
Built-in transient limiter and fixed 10dB attenuator to effectively protect spectrum analyzer.Built-in 150 KHz high pass filter switch to prevent spectrum analyzer or DUT receiver overload caused by low-frequency high amplitude signals.
Provide artificial hand function to simulate human hand impedance on handheld device (such as electric drill) measurement.
50 Ω output impedance and BNC output adaptor can collocate with spectrum analyzer.
Provide stable impedance for DUT and reference ground under testing frequency range.
Isolate the interfering signals produced by city electric power from the testing circuit to provide pure DC and AC power to DUT.
Couple DUT interfering voltage with spectrum analyzer.
