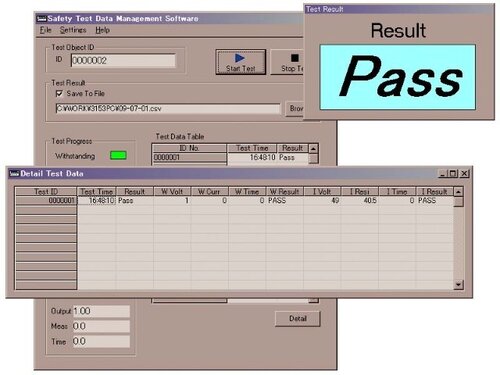

Hioki 9267 SAFETY TEST DATA MANAGEMENT SOFTWARE
PC-controlled Testing of Insulation, Withstand Voltage (Hipot), Protective Continuity, and Leakage Current
Key Features and Functions
- Control the electrical safety measuring instruments from a computer
- Perform automatic insulation and dielectric strength (hipot) testing of up to 32 points with the High Voltage Scanner 3930
- Easily create and save insulation, dielectric strength, and continuity test records
Documents and Software:
The Hioki electrical safety test instrument series is designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The 9267 is a PC application that supports the operation of Hioki electrical safety testers using a Windows computer.
Basic specifications
Compatible models | ST5520*, ST5540/ST5541, 3153, 3154, 3156, 3157, 3158, 3159, 3174, 3332, 3333, 3334, and PLCs from various manufacturers (for connection switching) |
Supplied media | CD-R ×1 |
Operating environment | Windows 10 (32-/64-bit), Windows 7 (32-/64-bit), Vista (32-bit), XP/2000 |
Test types | Insulation and dielectric strength, protective continuity, leak current, energization |
Recording data | Recording of test results (measured values) as a text file (CSV format) |
Interfaces | RS-232C (USB communication, or RS-232C with ST5540, ST5541) |
