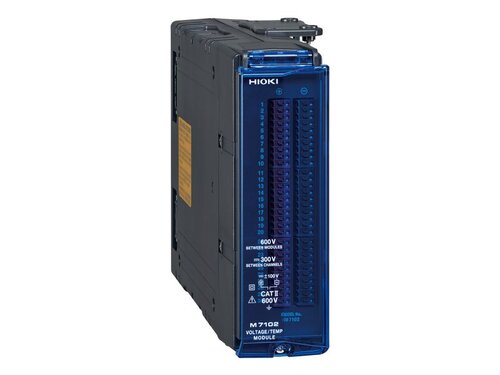

Hioki M7102 VOLTAGE/TEMP MODULE
A space-saving, multichannel measurement module
Safely conduct charge/discharge testing of increasingly high-voltage batteries
Key Features and Functions
- For 600 V or lower battery packs
- 30ch, voltage and temperature (thermocouple) measurement
- High-precision measurement of cell voltage
- Ideal for standalone battery cell testing and semiconductor burn-in testing
Documents and Software:
Basic specifications
Accuracy guaranteed: 1 year
Compatible models | Data Logger LR8101: Standard model |
Operating temperature and humidity range | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) |
Withstand voltage | 3.6 kV AC for 1 minute (sensitivity current 1 mA) |
Number of input channels | 30 channels |
Input terminal | Push-button type terminal block (2 terminals per channel), equipped with terminal block cover |
Measurement parameters | Voltage |
Input method | Scan method using semiconductor relays, floating unbalanced input |
A/D resolution | 18 bits |
Maximum input voltage | ±100 V DC |
Maximum voltage between the channels | 300 V DC |
Maximum rated line-to-ground voltage | 600 V AC, DC in measurement category II, anticipated transient overvoltage 4000 V |
Maximum rated voltage between the modules | 600 V AC, DC |
Input resistance | 100 MΩ or more ( voltage 10 mV f.s. to 6 V f.s. range, 1-5 V f.s. range, thermocouple all ranges) |
Data refresh interval | 10 ms (*1), 20 ms (*2), 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s |
Measurement range | Voltage: 10 mV f.s., 20 mV f.s., 100 mV f.s., 200 mV f.s., 1 V f.s., 2 V f.s., 6 V f.s., 10 V f.s., 20 V f.s., 60 V f.s., 100 V f.s., 1-5 V f.s. |
Dimensions and weight | Approx. 53W × 166H × 263D mm (2.1W × 6.5H × 10.4D in.), Approx. 1.2 kg (2.6 lbs) |
Included accessory | Instruction Manual ×1 |
Basic specifications
Accuracy guaranteed: 1 year
Compatible models | Data Logger LR8101: Standard model |
Operating temperature and humidity range | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) |
Withstand voltage | 3.6 kV AC for 1 minute (sensitivity current 1 mA) |
Number of input channels | 30 channels |
Input terminal | Push-button type terminal block (2 terminals per channel), equipped with terminal block cover |
Measurement parameters | Voltage |
Input method | Scan method using semiconductor relays, floating unbalanced input |
A/D resolution | 18 bits |
Maximum input voltage | ±100 V DC |
Maximum voltage between the channels | 300 V DC |
Maximum rated line-to-ground voltage | 600 V AC, DC in measurement category II, anticipated transient overvoltage 4000 V |
Maximum rated voltage between the modules | 600 V AC, DC |
Input resistance | 100 MΩ or more ( voltage 10 mV f.s. to 6 V f.s. range, 1-5 V f.s. range, thermocouple all ranges) |
Data refresh interval | 10 ms (*1), 20 ms (*2), 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s |
Measurement range | Voltage: 10 mV f.s., 20 mV f.s., 100 mV f.s., 200 mV f.s., 1 V f.s., 2 V f.s., 6 V f.s., 10 V f.s., 20 V f.s., 60 V f.s., 100 V f.s., 1-5 V f.s. |
Dimensions and weight | Approx. 53W × 166H × 263D mm (2.1W × 6.5H × 10.4D in.), Approx. 1.2 kg (2.6 lbs) |
Included accessory | Instruction Manual ×1 |
