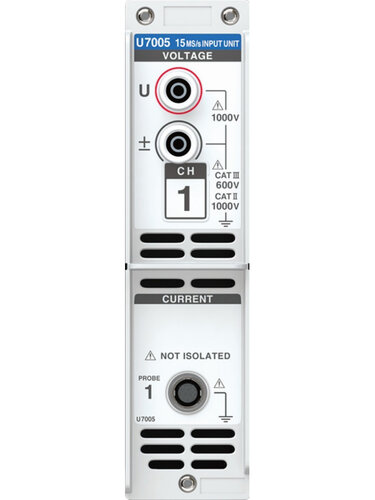

Hioki U7005 15 MS/S INPUT UNIT
U7005 Input module for PW8001 Power Analyzer
- Basic accuracy for 50/60 Hz Power: ±0.03%
- Sampling frequency: 15 MHz
- ADC resolution: 18-bit
- Measurement frequency band: DC, 0.1 Hz to 5 MHz
- Maximum input voltage: AC 1000 V, DC 1500 V, ±2000 V peak
- Maximum rated line-to-ground voltage:
- 600 V AC, 1000 V DC CAT III
- 1000 V AC, 1500 V DC CAT II
- Input units must be specified at the time of ordering
- Input units, voltage cords, and current sensors are required for measurement.
- Up to 8 U7001 and U7005 units in one mainframe
Availability:
Delivery time 3 to 5 weeks
U7005 Input module for PW8001 Power Analyzer
- Basic accuracy for 50/60 Hz Power: ±0.03%
- Sampling frequency: 15 MHz
- ADC resolution: 18-bit
- Measurement frequency band: DC, 0.1 Hz to 5 MHz
- Maximum input voltage: AC 1000 V, DC 1500 V, ±2000 V peak
- Maximum rated line-to-ground voltage:
- 600 V AC, 1000 V DC CAT III
- 1000 V AC, 1500 V DC CAT II
- Input units must be specified at the time of ordering
- Input units, voltage cords, and current sensors are required for measurement.
- Up to 8 U7001 and U7005 units in one mainframe
