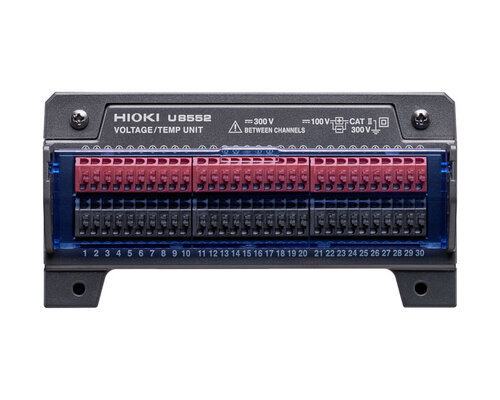

Hioki U8552 VOLTAGE/TEMP UNIT

30-channels, voltage, temperature (thermocouples), and humidity measurement
Sampling rate of up to 20 ms with 30 channels (10 ms sampling is possible when the number of channels used is 15 or less)
For DC voltage measurement and temperature measurement using thermocouples

Price

kr 11.983*

* excluding VAT plus shipping

Availability:

Typically on stock

On Stock. 1-2 weeks delivery

Basic specifications

Accuracy guaranteed: 1 year

Connectable instruments	Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity	-10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity	-20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories	Instruction manual × 1, mounting screw × 2
Number of input channels	30 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel)
Input terminals	Push-button type terminal block (2 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple, and humidity
Input type	Scanning by semiconductor relays All channels isolated (Not isolated when measuring with RTD, resistance, and humidity)
Voltage measurement (resolution)	10 ?V f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)	K: -100.00? to 1350.0? J: -100.00? to 1200.0? E: -100.00? to 1000.0? T: -100.00? to 400.0? N: -100.00? to 1300.0? R: 0.00? to 1700.0? S: 0.00? to 1700.0? B: 400.0? to 1800.0? C: 0.00? to 2000.0?
