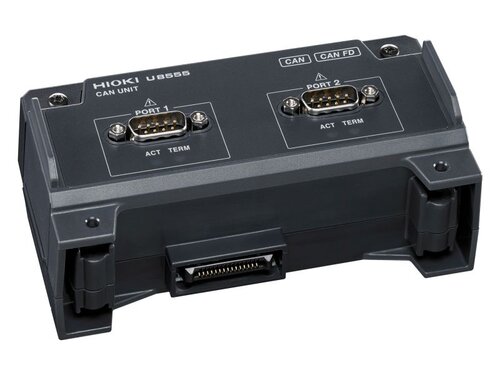

Hioki U8555 CAN Unit
CAN/CAN FD input or output
- CAN/CAN FD input and output switchable
- Max. sampling 10 ms (up to 50 ch)
- Up to 500 ch measurement (at 100 ms)
Documents and Software:
Basic specifications
Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) |
Operating temperature | -10°C to 50°C, 80% RH or less (no condensation) |
Storage temperature | -20°C to 60°C, 80% RH or less (no condensation) |
Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
Included accessories | Instruction manual × 1, mounting screw × 2 |
Input terminals | D-sub 9 pin MALE × 2 |
Operation mode | Supports switching between receive mode and measured value output mode |
Receive mode | No. of measurement channels: Max. 500 channels (max. 500 signals) |
Measured values output mode | Convert LR8450 measured values and output them as CAN frames. |
Protocols supported | CAN (ISO11898) |
Physical layer | ISO11898 (High Speed) |
Basic specifications
Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) |
Operating temperature | -10°C to 50°C, 80% RH or less (no condensation) |
Storage temperature | -20°C to 60°C, 80% RH or less (no condensation) |
Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
Included accessories | Instruction manual × 1, mounting screw × 2 |
Input terminals | D-sub 9 pin MALE × 2 |
Operation mode | Supports switching between receive mode and measured value output mode |
Receive mode | No. of measurement channels: Max. 500 channels (max. 500 signals) |
Measured values output mode | Convert LR8450 measured values and output them as CAN frames. |
Protocols supported | CAN (ISO11898) |
Physical layer | ISO11898 (High Speed) |
