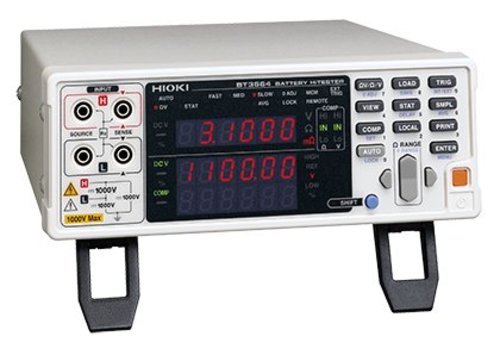

Hioki-BT3564 BATTERY HiTESTER, 1000 V DC maximum
1000V Maximum Input Voltage, High-Voltage Battery Tester for Measuring EV and PHEV Battery Packs
Key Features and Functions
- Measure the voltage of battery packs up to 1000 V
- Production line testing of high-voltage battery packs and battery modules
- Large (low-resistance) cell testing
- Choice of PC interfaces for full remote operation
Note: The comparison threshold values depend on the battery manufacturer, type, and capacity, and these must be established by the user.
Documents and Software:
Stock
Call or email for delivery time
Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000V.
Key Specifications:
- Max. applied measurement voltage:
- ± 1000 VDC rated input voltage
- ± 1000 VDC max. rated voltage to earth
- Resistance measurement ranges:
- 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3 kΩ (max. display 3.1000 kΩ, resolution 0.1 Ω), 7 ranges
- Accuracy: ±0.5 % rdg. ±5 dgt. (30 mΩ to 3 kΩ range), ±0.5 % rdg. ±10 dgt. (3 mΩ range)
- Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3.000 kΩ range)
- Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3.000 kΩ range)
- Voltage measurement ranges:
- 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 m V), 3 ranges
- Accuracy: ±0.01 % rdg. ±3 dgt.
- Display: 31000 full digits (resistance), 600000 full digits (voltage), LED
- Sampling rate: Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow)
- (Typ., sampling time depends on supply frequency settings and function.)
- Measurement time:
- Response time + sampling rate, approx. 10 ms for measurements
- (Response time depends on reference values and the measurement object.)
- Comparator functions:
- Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
- Setting: Upper and lower limit, Deviation (%) from reference value
- Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
- Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
- Analog output: Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
- Interfaces: External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
