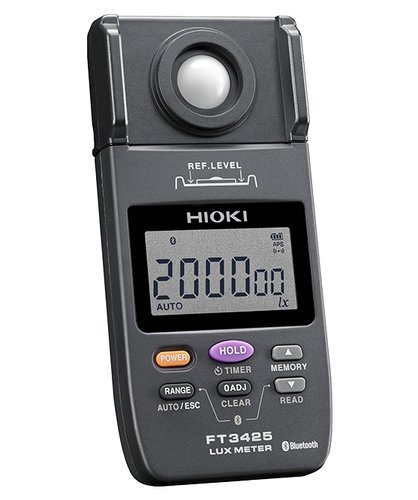

Hioki-FT3425 LUX METER, Bluetooth(R) wireless technology
High Reliability LUX METER Series, Complies with DIN Class B, Compatible with LED/OLED Lighting
Key Features and Functions
- Measured illuminance data is automatically sent to smartphone or tablet with Bluetooth® wireless technology
- Compatible with LED/OLED lighting
- Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class
- Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections
- Save up to 99 measured values in the instrument’s internal memory and transfer them to a computer later for improved work efficiency
- Data can be transferred to tablets and smartphones using Hioki’s dedicated free app 'GENNECT Cross'.
Documents and Software:
Stock
Call or email for delivery time
The FT3425 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3425 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels, and comes built in with Bluetooth® wireless technology.
Accuracy guaranteed: 2 years, Accuracy guarantee period after adjustment made by Hioki: 2 years
- Standards: DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
- Light receiving element: Silicon photo diode
- Range selection: Auto/ Manual
- Linearity: ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
- Accuracy guarantee for temperature and humidity: 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
- Response time: Auto range: within 5 seconds, Manual range: within 2 seconds
- D/A output:
- Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.)
- Output accuracy: ±1% rdg. ±5 mV (at display count)
- Functions:
- Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment
- Interfaces:
- USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only)
- Power supply:
- LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
- Continuous battery operation time: 300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON)
- Dimensions and mass (including the batteries):
- 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D,
- 310 g (10.9 oz, FT3424) / 320 g (11.3 oz, FT3425)
- Accessories:
- Instruction Manual ×1, AA/LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 (only FT3425)
