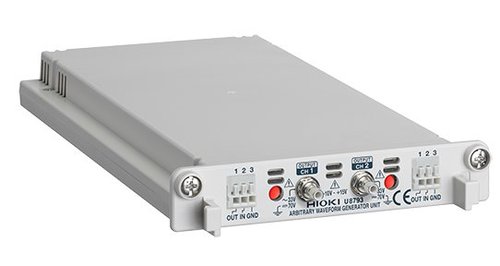

Hioki-U8793 ARBITRARY WAVEFORM GENERATOR UNIT
Output signals measured with a Memory HiCorder to simulate anomalous events for scenario testing
Key Features and Functions
- Output arbitrary waveform signals up to 2 channels
- Output problematic waveforms recorded with the Memory HiCorder up to 15 V
- Output customized arbitrary waveforms signals up to 15 V
- For use with Hioki Memory HiCorder series (cannot use with 8847 or MR8847)
- Built-in function generator and sweep function
- Isolated between unit and output, and between all channels
Documents and Software:
The Arbitrary Waveform Generator Unit U8793 is a plug-and-play module for the Hioki Memory HiCorder to create a function generator, arbitrary waveform generator, and waveform measurement in a single device. Easily observe waveforms while varying test conditions, such as changing the signal's amplitude and frequency as well as programming various waveforms to output in order.
Basic specifications
- Output terminal:
- Number of channels: 2, SMB terminal (Output impedance: 1 Ω or less)
- Max. rated voltage to ground: 33 V rms AC or 70 V DC
- Output voltage range: -10 V to 15 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV)
- Max. output current: 10 mA (Allowable load resistance: 1.5 kΩ or more)
- Function generator: DC, Sine wave, Square wave, Pulse wave, Triangular wave, Ramp wave, Output frequency: 0 Hz to 100 kHz
- Arbitrary waveform generator mode:
- Waveforms measured by MR8847A, etc., generated by Hioki Model 7075, PW3198, or SF8000, CSV waveforms
- D/A refresh rate: 2 MHz (using 16-bit D/A)
- Sweep function: Frequency, Amplitude, Offset, Duty (Pulse only)
- Program function: Max. 128 steps (Number of loops for each step, Number of total loops)
- Other: Self-test function (Voltage), External input/output control
