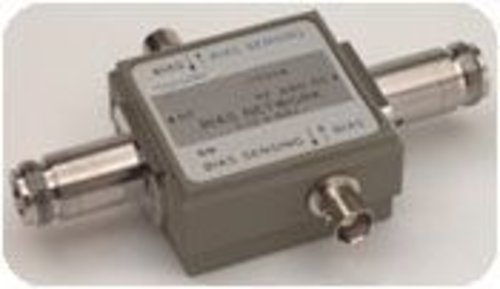

Keysight 11590B Broadband high power bias network
- Frequency range: 100 MHz to 12.4 GHz (optional to 18 GHz)
- Insertion loss (dB): 0.8 (1.2, 12.4 - 18 GHz)
- Maximum SWR: 1.25 (1.5, 12.4 - 18 GHz)
- Impedance: 50 ohms
- RF power: +24 dBm max
- Bias current: 500 mA
- Bias voltage: 100 V
- Connectors: RF input-Type N (f), RF output-Type N (f), dc bias-BNC (f)
Stock
Call or email for delivery time
The Keysight 11590B broadband high power bias networks can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.
- Frequency range: 100 MHz to 12.4 GHz (optional to 18 GHz)
- Insertion loss (dB): 0.8 (1.2, 12.4 - 18 GHz)
- Maximum SWR: 1.25 (1.5, 12.4 - 18 GHz)
- Impedance: 50 ohms
- RF power: +24 dBm max
- Bias current: 500 mA
- Bias voltage: 100 V
- Connectors: RF input-Type N (f), RF output-Type N (f), dc bias-BNC (f)
- Temperature: Warranted performance over 0 to 55 degrees C unless otherwise noted
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
The Keysight 11590B broadband high power bias networks can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.
- Frequency range: 100 MHz to 12.4 GHz (optional to 18 GHz)
- Insertion loss (dB): 0.8 (1.2, 12.4 - 18 GHz)
- Maximum SWR: 1.25 (1.5, 12.4 - 18 GHz)
- Impedance: 50 ohms
- RF power: +24 dBm max
- Bias current: 500 mA
- Bias voltage: 100 V
- Connectors: RF input-Type N (f), RF output-Type N (f), dc bias-BNC (f)
- Temperature: Warranted performance over 0 to 55 degrees C unless otherwise noted
