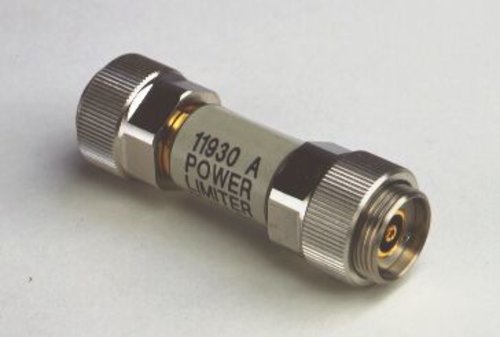

Keysight 11930A APC-7 limiter, DC-6 GHz

  • Frequency range: dc to 6 GHz
  • Insertion loss: 1.0 dB to 3 GHz, 1.5 dB to 6 GHz
  • Return loss: 22 dB 30 kHz to 3 GHz, 20 dB 3 GHz to 6 GHz
  • Maximum input power levels: 3 Watts (continuous), 6 Watts (pulse, 30 ms pulse width, 10% duty cycle)
  • Limiting threshold: 30 dBm, typical
  • Maximum dc volt: 30 V

Product Number:

11930A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The Keysight 11930A limiter provides input protection for a variety of RF and microwave instrumentation. For example, the input circuits of network analyzers may be protected for inputs up to 6 watts peak or 3 watts average power using the Keysight 11930A.

The Keysight 11930A is furnished with an APC-7 (7-mm) connector. This power limiter offers low insertion loss and linear operation at low input levels while providing protection against transients or short duration overloads.

Description
Additional Informations
Reviews
Query on the Item?
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item?

The Keysight 11930A limiter provides input protection for a variety of RF and microwave instrumentation. For example, the input circuits of network analyzers may be protected for inputs up to 6 watts peak or 3 watts average power using the Keysight 11930A.

The Keysight 11930A is furnished with an APC-7 (7-mm) connector. This power limiter offers low insertion loss and linear operation at low input levels while providing protection against transients or short duration overloads.
