Keysight D9010ASIA Advanced Signal Integrity Software (EQ, InfiiniSimAdv, Crosstalk) for MXR/EXR/S-Series
Key Features & Specifications
Emulate feed-forward (FFE), decision feedback (DFE), and continuous-time linear equalization (CTLE)
- Application allows for accurate modeling of DFE, FFE and CTLE.
- FFE emulation accurately depicts hardware equalization.
- DFE is adaptive and allows for customization of the tap values.

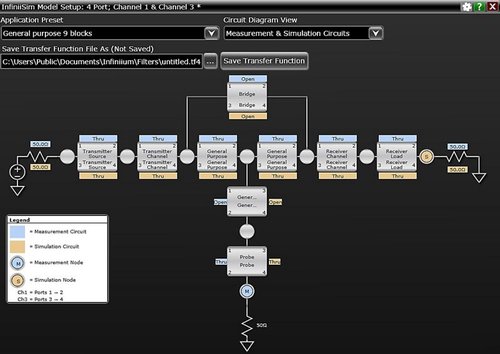

InfiniiSim
- Removes channel effects such as lossy cables or test fixtures, commonly called 'de-embedding.'
- View waveforms anywhere in a modeled system.
- Inserts channel effects such as a standard cable model.
- Replace one or more channel elements with another.
Crosstalk
- Challenge the crosstalk analysis application addresses.
- Identify the sources of crosstalk affecting the victim.
- Quantify how much each aggressor is disrupting the victim.
- Remove the effect of crosstalk from the victim signal for analysis.
- Check how much design margin is recovered when crosstalk is removed from victim+V26.
Serial data equalization
Equalization is becoming an increasingly important application for today's digital designers. Higher data rates coupled with longer backplanes and interconnect distances have resulted in greater signal attenuation at the receiver. The outcome is the closing of eyes at the receiver, making it difficult to distinguish between a high and a low for even the most sophisticated decoding algorithms. The Infiniium serial data equalization (SDE) software uses Infiniium's low noise floor and clock recovery algorithms, combined with new equalization software, to accurately depict DFE, CTLE, and FFE. Now users can model equalization and de-embedding using only an oscilloscope and the Infiniium SDE software.
Serial data equalization
Equalization is becoming an increasingly important application for today's digital designers. Higher data rates coupled with longer backplanes and interconnect distances have resulted in greater signal attenuation at the receiver. The outcome is the closing of eyes at the receiver, making it difficult to distinguish between a high and a low for even the most sophisticated decoding algorithms. The Infiniium serial data equalization (SDE) software uses Infiniium's low noise floor and clock recovery algorithms, combined with new equalization software, to accurately depict DFE, CTLE, and FFE. Now users can model equalization and de-embedding using only an oscilloscope and the Infiniium SDE software.
