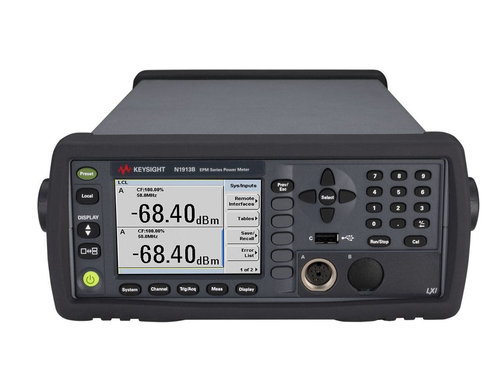

Keysight N1913B Power Meter - Average, single channel

Key Features and Specifications

The N1913B EPM series single-channel average power meter provides repeatable and reliable results for bench/rack and field applications.

  • Frequency range of DC to 120 GHz (sensor dependent)
  • Wide dynamic range of -70 to +44 dBm (sensor dependent)
  • Go beyond GPIB with LAN LXI-C and USB connectivity
  • Backward compatible with N1913/14A EPM Series single/dual-channel average power meters
  • Increased measurement channels: up to three channels with two additional U2000/U8480 Series and U2050/60 (except the peak power measurement) X-Series USB power sensors connected using the optional USB hosts
  • Automated frequency/power sweep measurements with the optional external trigger in/out feature
  • BenchVue software license (BV0007B) is included, which makes it simple to connect, control instruments, and automate test sequences

Product Number:

N1913B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Consistent results and greater capability

Get repeatable and reliable results for bench/rack and field applications with the N1913B and N1914B EPM series power meters. These power meters offer a measurement speed of up to 400 readings/second for fast, accurate average power measurements, and come with the industry’s first color LCD screen in an average power meter, allowing you to view and analyze test data more easily. A noteworthy enhancement from the conventional dual-channel power meter, EPM Series power meter enables four-channel power measurement by connecting U2000 Series USB power sensors via optional USB host. Connect U2000 Series USB power sensors to the EPM Series power meters via the optional USB hosts and get up four channels for power measurements.

Code compatibility with legacy power meters

Designed as versatile, user friendly replacements for the legacy Keysight EPM series power meters, the N1913B and N1914B are code compatible with the E4418B and E4419B EPM series*. The N1913B and N1914B are also code compatible with the 436A, 437B and 438A power meters with the N191xB-200 options.

Wide range of sensor options

The N1913B and N1914B EPM Series power meters are compatible with all E9300 series sensors (except E9320 series sensor), E4410 series sensors and N8480 series sensors, including 8480 discontinued models.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

Consistent results and greater capability

Get repeatable and reliable results for bench/rack and field applications with the N1913B and N1914B EPM series power meters. These power meters offer a measurement speed of up to 400 readings/second for fast, accurate average power measurements, and come with the industry’s first color LCD screen in an average power meter, allowing you to view and analyze test data more easily. A noteworthy enhancement from the conventional dual-channel power meter, EPM Series power meter enables four-channel power measurement by connecting U2000 Series USB power sensors via optional USB host. Connect U2000 Series USB power sensors to the EPM Series power meters via the optional USB hosts and get up four channels for power measurements.

Code compatibility with legacy power meters

Designed as versatile, user friendly replacements for the legacy Keysight EPM series power meters, the N1913B and N1914B are code compatible with the E4418B and E4419B EPM series*. The N1913B and N1914B are also code compatible with the 436A, 437B and 438A power meters with the N191xB-200 options.

Wide range of sensor options

The N1913B and N1914B EPM Series power meters are compatible with all E9300 series sensors (except E9320 series sensor), E4410 series sensors and N8480 series sensors, including 8480 discontinued models.
