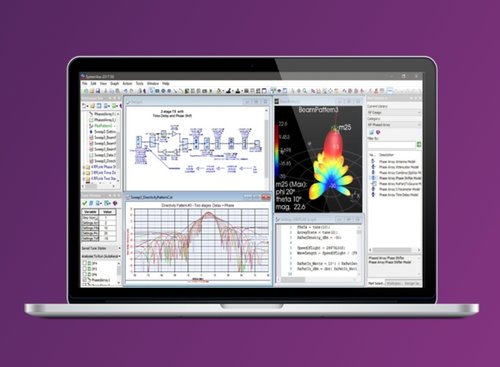

Keysight W4800B PathWave System Design (SystemVue)

Key Features and Functions

PathWave System Design (SystemVue) is a multi-domain modeling environment that accelerates design, verification, and test. Standards libraries for automotive radar, 802.11ax WLAN, and NB-IoT enable real-world scenario verification. Moving pedestrian models provide realistic verification of automotive radar designs in detecting human targets.

  • Validate baseband and RF integration early
  • Streamline verification with pre-built test benches
  • Easily connect to test equipment
  • Perform 5G architecture development and validation
  • Create and verify algorithms with baseband libraries
  • Simulate real-world radar scenarios

Documents and further Resources:

Product Number:

W4800B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick Delivery

Find the bundle that is right for you

ModelBundleDescription
W4800BPathWave System Design Core Base environment for PathWave System Design. Includes schematic entry, data plotting, and MATLAB code support.
W4801BPathWave System Design Core + RFAdds the RF analysis simulation element giving you access to the SPECTRASYS engine, WhatIF, linear simulation, and RF component model libraries.
W4802BPathWave System Design Core + Comms/DSPA timed dataflow simulation engine to create communications and digital signal processing designs. Includes libraries of general DSP components, digital modulation, SerDes, MIMO, and legacy cellular standards.
W4803BPathWave System Design Core + RF + Comms/DSPCombines both the RF and comms / DSP analyses, allowing RF link to connect timed dataflow analysis with accurate RF system models.
W4804BPathWave System Design Core + RF + Comms/DSP + Phased ArrayAdds the advanced phased array analysis simulator for both RF and comms / DSP applications using beamforming.
W4806BPathWave System Design Algorithm CoreEmbedded algorithm bundle — RF and comms / DSP simulation engines for use by algorithm designers working in a MATLAB-centric environment (does not include the PathWave System Design Core component).
W4810BPathWave System Design Core + AMIHigh-speed digital (HSD) bundle — complete AMI model generation bundle. Includes the PathWave System Design Core, comms / DSP simulator, AMI modeling kit, and C++ code generation kit.
