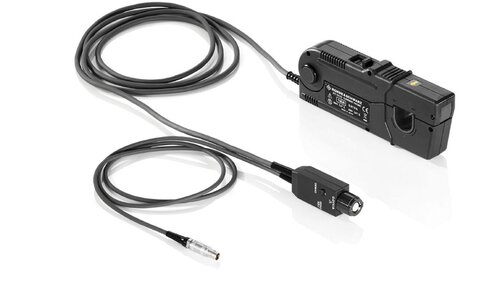

RT-ZC10 10MHz current probe, AC/DC, 150Arms, 300A peak, 20mm diameter, BNC connector, +/-12V power supply required, RT-ZA13 recommended (accessory)
The RT-ZC10 clamp meter measures direct and alternating currents precisely without interrupting the circuit for the measurement. The particularly spacious opening of the RT-ZC10 includes conductors with a diameter of up to 20 mm. The RT-ZC10 can measure peak currents up to 300 A (500 A for a single pulse).
The current clamps from Rohde & Schwarz impress with their stable design and easy handling. Degauss and offset corrections are simply made directly at the probe connection. The compact ZA13 external power supply supplies up to four current clamps.
For more information download the Probes and Accessories Catalog:
RT-ZC10 10MHz current probe, AC/DC, 150Arms, 300A peak, 20mm diameter, BNC connector, +/-12V power supply required, RT-ZA13 recommended (accessory)
The RT-ZC10 clamp meter measures direct and alternating currents precisely without interrupting the circuit for the measurement. The particularly spacious opening of the RT-ZC10 includes conductors with a diameter of up to 20 mm. The RT-ZC10 can measure peak currents up to 300 A (500 A for a single pulse).
The current clamps from Rohde & Schwarz impress with their stable design and easy handling. Degauss and offset corrections are simply made directly at the probe connection. The compact ZA13 external power supply supplies up to four current clamps.
For more information download the Probes and Accessories Catalog:
- Probes and Accessories Catalog
- RT-Zxx Standard Probes Specifications
- Chose the right Probe
RT-ZC10 10MHz current probe, AC/DC, 150Arms, 300A peak, 20mm diameter, BNC connector, +/-12V power supply required, RT-ZA13 recommended (accessory)
The RT-ZC10 clamp meter measures direct and alternating currents precisely without interrupting the circuit for the measurement. The particularly spacious opening of the RT-ZC10 includes conductors with a diameter of up to 20 mm. The RT-ZC10 can measure peak currents up to 300 A (500 A for a single pulse).
The current clamps from Rohde & Schwarz impress with their stable design and easy handling. Degauss and offset corrections are simply made directly at the probe connection. The compact ZA13 external power supply supplies up to four current clamps.
For more information download the Probes and Accessories Catalog:
- Probes and Accessories Catalog
- RT-Zxx Standard Probes Specifications
- Chose the right Probe
