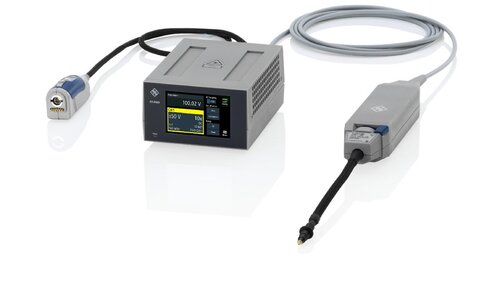

R&S RT-ZISO Isolated probe system, SMA input, 0.04X 120X, ±0.01V...±30V 1 Mohm
RT-ZISO Isolated probe system, SMA input, 0.04X…120X, ±0.01V...±30V 1 Mohm , 8.0pF, to be configured with fiber cable lengths, bandwidth option and tips selections
The RT-ZISO isolated probing system can tackle the challenge of measuring in high voltage and fast switching environments. The power-over-fiber-optic architecture galvanically isolates the device under test (DUT) for the highest possible common mode rejection ratio (CMRR) at up to 1 GHz. The complete systems compensate thermal drifts and gain errors for the highest possible and uncompromising signal fidelity .
- 100, 200, 350, 500 MHz and 1 GHz bandwidth, upgradeable
- > 90 dB CMRR at 1 GHz
- ± 3000 V differential input range and offset
- ± 60 kV common mode range
- Dual connectivity with a Rohde & Schwarz probe interface and SMA connector
For more information download the Probes and Accessories Catalog:
