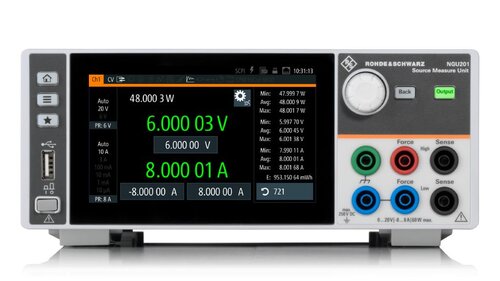

R&S NGU201COM Two-quadrant source measure unit, 0 V to 20 V, max. ±8 A, max. 60 W, electronic load (max. 20 V/8 A/60 W), USB/LAN, digital trigger, analog input and battery simulation
Key Features and Specifications
- Two/four quadrants: operates as source and sink
- High speed data acquisition (FastLog function)
- Voltage priority and current priority mode
- High-capacitance mode
R&S Essential Summer Promotion.
On this bundled product Rohde & Schwarz offers a time limited discount of 21%.
The discount can be deducted from the price mentioned.
The top-class in supplying power
The extremely high accuracy and fast load recovery times make NGU source measure units (SMU) perfect for challenging applications, such as:
- battery and power consumption tests
- supplying wireless devices with power
- simulation of voltage drops
A special ammeter design is used to precisely measure current drains from nA to A in one pass – no need to make multiple measurement sweeps. The short recovery times enable the instruments to handle fast load changes when mobile communications devices switch from sleep to transmit mode. Every detail is detected down to 2 μs resolution with high speed data acquisition. NGU source measure units have two or four quadrant architecture to function both as a source and a sink.
