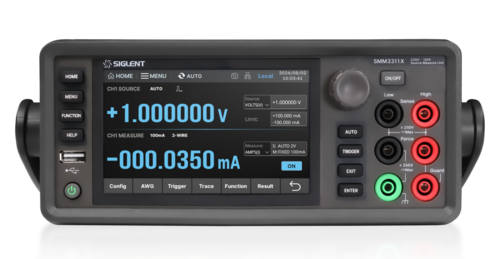

Siglent SMM3311X Precision Source/Measure Unit, 1 ch, 10 fA, 210 V, 3 A DC/10.5 A pulse
Key Features
- Five-inch, high resolution capacitive touchscreen GUI
- Source and measurement resolution down to 10 fA and 100 nV
- The maximum display digits: 6½ (21,000,00 count)
- The maximum sampling rate is 100ksps, the sampling interval is 0.0005 PLC, and the maximum setting is 100 PLC.
- Minimum trigger interval 10 μs.
- Up to 100k points of internal storage space, supporting timestamps.
- Four-quadrant precision power supply with single/dual-channel output and measurement
- Voltage (±210 V) and current (± 3 A DC and ±10.5 A pulsed) sourcing capability
- Five basic functions: voltage/current sourcing, voltage/current/resistance measurement
- The minimum programmable pulse width is 50 μs.
- With arbitrary waveform generation and list scanning capabilities (minimum interval of 10 μs)
- Supports two-wire/four-wire measurement modes
- Supports SCPI remote control commands
- Settable output filter
- Configuration Interfaces: USB Device (optional USB-GPIB adapter), USB Host, LAN
Technical Data:
- Channels: 1 ch
- Current Resolution: 10 fA
- Maximum Voltage: 210 V
- Maximum Current: 3 A DC / 10.5 A Pulse
User manuals
The SMM3000X series is a precise Source/Measure Unit (SMU) instrument that can simultaneously output and measure voltage and current. It integrates the functions of a current source, voltage source, voltmeter, and ammeter within the instrument, allowing for easy switching between these functions. The graphical user interface (GUI) it employs, along with advanced capacitive touchscreen technology, allows for intuitive operation.
The SMM3000X is the SMU for everyone: a versatile instrument, particularly well-suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices It is widely used in fields such as research and educational applications, industrial development, testing, and manufacturing.
The SMM3000X series is a precise Source/Measure Unit (SMU) instrument that can simultaneously output and measure voltage and current. It integrates the functions of a current source, voltage source, voltmeter, and ammeter within the instrument, allowing for easy switching between these functions. The graphical user interface (GUI) it employs, along with advanced capacitive touchscreen technology, allows for intuitive operation.
The SMM3000X is the SMU for everyone: a versatile instrument, particularly well-suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices It is widely used in fields such as research and educational applications, industrial development, testing, and manufacturing.
