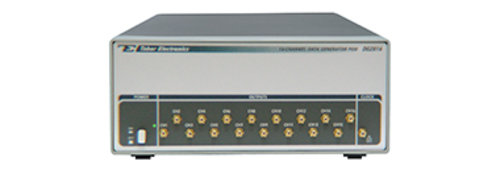

Tabor DG2816 300Mb/s 16-Channels Digital Signal Amplifier/POD
Key Features
- 16 Digital Data Channels
- Data Rate of 2.5Mb/s to 300Mb/s
- Dedicated pattern memory of 128k/channel
- Up to 4M shared Arbitrary Memory
- Programmable amplitude and offset control
- ±2ns skew control with 5ps resolution
- Up to 4Vp-p into 50Ω, double into open circuit
- Transition Times < 2ns
- Auxiliary clock output
The 2816 is a data generator pod that operates only in conjunction with one of the following Tabor generators: WW2571A and WW2572A, PM8571A and PM8572A. Combined they become a fully featured, high performance, 300Mb/s 16 Channels Digital Data Generator that provides a flexible and innovative solution answering the needs of today’s digital designers in performing characterization, validation, verification or debugging of circuits.
