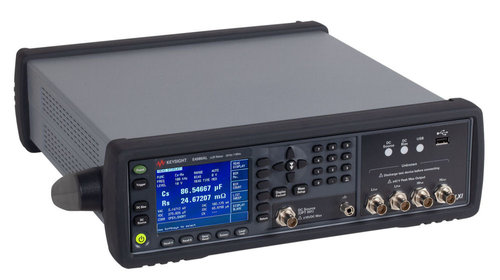

Keysight E4980AL Precision LCR Meter

Key Specifications

  • Frequency: 20 Hz to 300 kHz/500 kHz/1 MHz, with 4-digit resolution in any range
  • Basic accuracy: 0.05% basic accuracy with superior measurement repeatability at low and high impedance
  • More features
    • 100 uV to 2 Vrms, 1 uA to 20 mA variable test signal
    • DC bias 1.5/2 V
    • Auto-level control
    • DC resistance
    • 201 points list sweep
    • Versatile PC connectivity (LAN, USB, and GPIB)
    • Frequency Upgradability

Documents and Fixture Solutions:

Product Number:

E4980AL

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Delivery Time: 1 Week

An Industry Standard LCR Meter

The E4980AL precision LCR meter is an industry standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.

Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980AL is the basic tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.?

E4980AL supports a variety of accessories suitable for many applications. They are designed to make measurements simple and reliable. Check out the large selection of accessories

Accurate measurements

Exceptionally low noise at both low and high impedance for evaluating the characteristics of inductors and capacitors with excellent accuracy and repeatability.

  • 0.05% basic impedance accuracy
  • 1/2/4m cable extension capability
  • Open/Short/Load correction

For frequency range up to 2 MHz, see E4980A Precision LCR Meter 20 Hz to 2 MHz.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

An Industry Standard LCR Meter

The E4980AL precision LCR meter is an industry standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.

Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980AL is the basic tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.?

E4980AL supports a variety of accessories suitable for many applications. They are designed to make measurements simple and reliable. Check out the large selection of accessories

Accurate measurements

Exceptionally low noise at both low and high impedance for evaluating the characteristics of inductors and capacitors with excellent accuracy and repeatability.

  • 0.05% basic impedance accuracy
  • 1/2/4m cable extension capability
  • Open/Short/Load correction

For frequency range up to 2 MHz, see E4980A Precision LCR Meter 20 Hz to 2 MHz.
