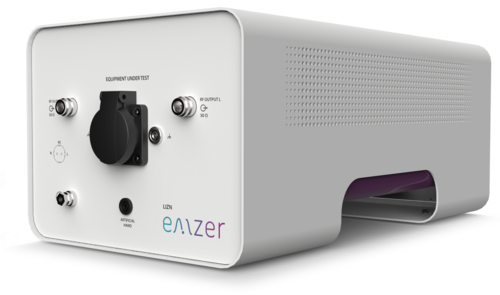

EMZER-LIZN Double channel LISN for simultaneous measurements of line and neutral terminals
Technical Specifications
- Standard: Fully compliant to CISPR 16-1-2 standard
- Frequency range: 9 kHz – 30 MHz
- AMN Impedance: 50 Ω || (50 μH + 5 Ω)
- Network Impedance: 50 Ω
- Pre-filter Choke: 250 μH
- Maximum Continuous Current: 16 A @ 230 VAC (socket dependent; check user manual)
- Maximum Voltage: 300 VAC / 325 VDC (socket dependent; check user manual)
- Operating Frequency: DC to 60 Hz
- RF connector type: 2 ports N female
- Artificial hand / connector type: 510 Ω + 220 pF / 4 mm banana
- Connector for EUT/mains: Schuko socket (Type F)/IEC C20
Documents and Software Solutions:
LIZN is a new Line Impedance Stabilization Network fully compliant to CISPR 16-1-2 that facilitates the simultaneous measurement in both lines and the extraction of common- and differential-mode
