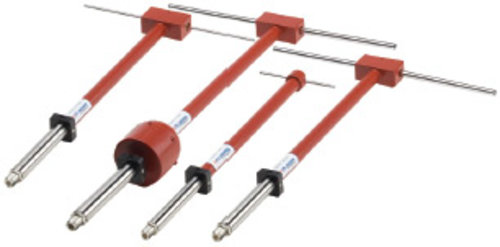

ETS-3121D Dipole (30 MHz - 1 GHz)

  • FCC Design
  • Low VSWR and Balun Loss
  • Individually Calibrated
  • Appropriate for site attenuation measurements
  • Both Stinger and EMCO Mounts Included

Electrical Specifications

  • Frequency Minimum 30 MHz
  • Frequency Maximum 1 GHz
  • Impedance (Nominal) 50 ?
  • Maximum Continuous Power 50W-260W
  • Pattern Type omnidirectional
  • Polarization linear
  • VSWR <1.6:1

Physical Specifications

  • Balun Thickness 7 cm
  • Boom Thickness 3.5 cm
  • Depth 55 cm
  • Weight 9.5 kg
  • Width 5.2 m

Product Number:

ETS-3121D

Manufacturer:

ETS-Lindgren

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The ETS-Lindgren Model 3121D Tuned Dipole Antennais virtually identical to the optimally matched, compensated balun design used by Willmar K. Roberts while he was Assistant Chief Engineer at the FCC laboratory. ETS-Lindgren has made select physical improvements to the original design assuring optimal performance and years of trouble-free use.ETS-Lindgrens dipole offers an accurate standard for precise EMI measurements including FCC and EN compliance testing, site attenuation as described in EN55022 and ANSI C63.4, and antenna calibration as described in ANSI C63.5.The Model 3121D tuned dipole antenna covers a frequency range of 30 MHz to 1 GHz and its behavior approaches to the theoretically perfect loss-less half-wavelength resonant dipole.Each 3121D dipole is individually calibrated at 10 meters per ANSI C63.5, using the preferred three antenna method. All measurement equipment used is NIST traceable.These measurements are made without the use of attenuators, so antenna factors are a true presentation of actual performance. A printout of the calibration data of each antenna is included with the Manual and is also archived. Individual calibration and actual antenna factors are preferred over typical or theoretical factors and provide confidence of test data.FEATURESFCC DesignETS-Lindgren has incorporated contemporary materials, precision manufacturing and select improvements (such as Type N connectors for balun and cable connections) to the optimally matched, compensated balun design used by Willmar K. Roberts at the FCC laboratory. The result is a quality product that provides years of use.Low VSWR and Balun LossThe Model 3121D tuned dipole antenna has an average VSWR of less than 1.6:1 and a balun loss of less than .5 dB throughout its frequency range of 30 MHz to 1 GHz.Appropriate for EMI Testing and Site AttenuationETS-Lindgrens tuned dipole antenna is suitable for both commercial and military EMI emissions and immunity testing. The Model 3121D also can be used to perform site attenuation per EN55022 and ANSI C63.4.Quality Construction Complete with AccessoriesETS-Lindgrens tuned dipole is constructed of lightweight corrosion resistant elements, providing years of trouble-free indoor and outdoor service. A clamp block, delrin support rod, and aluminum mounting base are included in the set. The aluminum mounting base accepts standard 1/4 in x 20 threads from an EMCO tripod or most other tripods. All components, including a tape measure, and ruler which shows corresponding frequency, are included in a shock-resistant carrying case.Flexible Mounting SystemThe 3121D antenna includes both an EMCO traditional mount, which is ideal for tripod and fits all EMCO masts, and a rear stinger mount. The stinger mount permits on-axis rotation/polarization.
