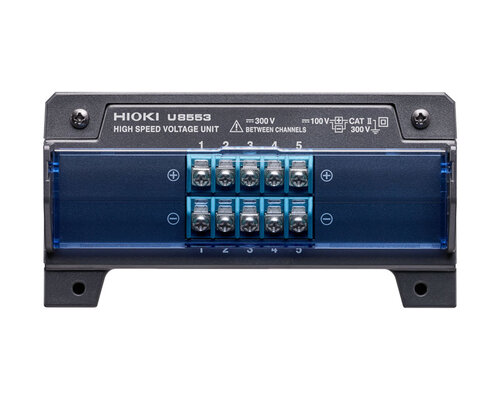

Hioki U8553 HIGH SPEED VOLTAGE UNIT
Voltage measurement with 1 ms sampling
- 5 channels, voltage measurement
- Sampling rate of up to 1 ms with 5 channels
- For measuring various sensor outputs at several tens of Hz, such as pressure and vibration.
Documents and Software:
Basic specifications
Accuracy guaranteed: 1 year
Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) |
Operating temperature | -10°C to 50°C, 80% RH or less (no condensation) |
Storage temperature | -20°C to 60°C, 80% RH or less (no condensation) |
Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
Included accessories | Instruction manual × 1, mounting screw × 2 |
Number of input | 5 ch (for voltage only) |
Input terminals | M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover |
Measurement | Voltage |
Input type | Scanning by semiconductor relays |
Voltage measurement (resolution) | 100 mV f.s. (5 μV), 200 mV f.s. (10 μV), 1 V f.s. (50 μV), 2 V f.s. (100 μV), 10 V f.s. (500 μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500 μV) |
