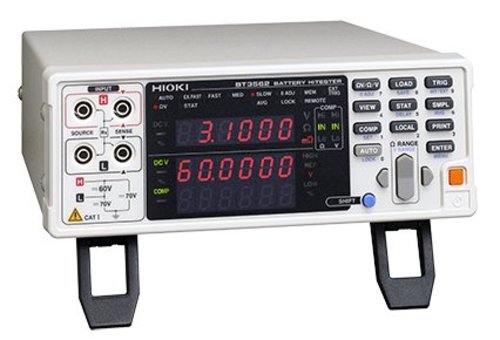

Hioki-BT3562 BATTERY HiTESTER, 60 V DC maximum

Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3562 can measure the voltage and resistance of coin-size to large-cell batteries up to 60V almost simultaneously due to their quick response time.

Key Specifications:

• Max. applied measurement voltage:
• ± 60 V DC rated input voltage
• ± 70 V DC Max. rated voltage to earth
• Resistance measurement ranges:
• 3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges
• Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
• 3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM)
• Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range)
• Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
• Voltage measurement ranges:
• 6 VDC (resolution 10 μV) to 60 VDC (resolution 100 μV), 2 ranges
• Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
• Display: 31000 full digits (resistance), 600000 full digits (voltage), LED
• Sampling rate: Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow)
• (Typ., sampling time depends on supply frequency settings and function.)
• Measurement time:
• Response time + sampling rate, approx. 10 ms for measurements
• (Response time depends on reference values and the measurement object.)
• Comparator functions:
• Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
• Setting: Upper and lower limit, Deviation (%) from reference value
• Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
• Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
• Analog output: Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
• Interfaces: External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
