Keysight D9010PCIP Advanced PCIe Protocol Decode/Trigger Software (PCIe 4/3/2/1, SATA/SAS)
PCI Express® 4.0 Protocol Decode Software
- 128/130 bit decoding of PCI Express 4.0 waveforms at 16GT/s
- Supports decoding of PCIe 3.x, 2.x, 1.1x and 1.0 at 8GT/s, 5GT/s, and 2.5GT/s respectively
- Automatic or manual decode setup for your signal
- Waveform to Packet level decode of serial data for greater insight
SATA Protocol Analysis and Decode
- Setup wizard for quick setup, configuration and analysis
- Serial data analysis with 8B/10B symbols
- Packet-level decode of primitives as well as link and transaction layers
- Numerical decode values of the traffic are automatically displayed and synchronized
PCI Express® 4.0 Protocol Decode Software

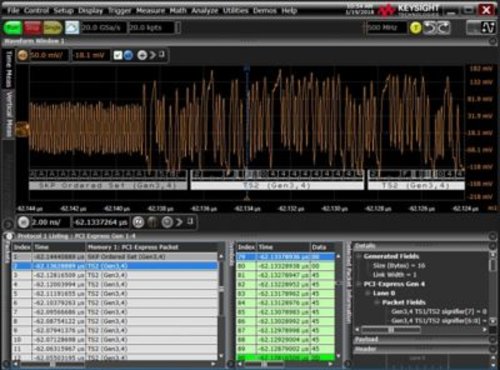

This PCI Express 4.0 Protocol Viewer (PV) software provides an industry leading method to view and correlate analog and digital domains for greater insight when analyzing PCI Express serial data streams. It goes beyond basic symbol and character decode and provides time-correlated views of waveform, symbol, character, link and transaction layer packet data down to the bit level. This makes it easy for you to isolate communication faults to logic or analog sources as root cause.
This software is compatible with Keysight Z-Series, V-Series, Q-Series, X-Series, UXR-Series, and 90000A Series Infiniium oscilloscopes and supports protocol decode for the PCI Express 1.0, 1.1, 2.x, 3.x and 4.0 standards at PCIe supported speeds of up to 16GT/s
SATA Protocol Analysis and Decode
With the need for faster-access, higher performance and improved power saving storage capabilities, the new SATA 6 Gb/s and 3Gb/s standard has been a popular choice for many new emerging designs and solid state drives. Besides that, many electronic products that include fast-access storage capabilities that have cost constraints or legacy requirements also make SATA 1.5 Gb/s a preferable choice. Users can quickly see SATA 1.5, 3.0 and 6.0 Gb/s information at both the physical and protocol layers in devices that include fast-access s torage capabilities. They can trigger on and view both protocol layer information and physical layer signal characteristics for SATA. Numerical decode values of the SATA traffic are automatically displayed and synchronized below the capture signal or seen in protocol viewer. Generally, the 9000 and S-Series oscilloscopes are ideal for SATA 1.5 Gb/s.
PCI Express® 4.0 Protocol Decode Software
This PCI Express 4.0 Protocol Viewer (PV) software provides an industry leading method to view and correlate analog and digital domains for greater insight when analyzing PCI Express serial data streams. It goes beyond basic symbol and character decode and provides time-correlated views of waveform, symbol, character, link and transaction layer packet data down to the bit level. This makes it easy for you to isolate communication faults to logic or analog sources as root cause.
This software is compatible with Keysight Z-Series, V-Series, Q-Series, X-Series, UXR-Series, and 90000A Series Infiniium oscilloscopes and supports protocol decode for the PCI Express 1.0, 1.1, 2.x, 3.x and 4.0 standards at PCIe supported speeds of up to 16GT/s
SATA Protocol Analysis and Decode
With the need for faster-access, higher performance and improved power saving storage capabilities, the new SATA 6 Gb/s and 3Gb/s standard has been a popular choice for many new emerging designs and solid state drives. Besides that, many electronic products that include fast-access storage capabilities that have cost constraints or legacy requirements also make SATA 1.5 Gb/s a preferable choice. Users can quickly see SATA 1.5, 3.0 and 6.0 Gb/s information at both the physical and protocol layers in devices that include fast-access s torage capabilities. They can trigger on and view both protocol layer information and physical layer signal characteristics for SATA. Numerical decode values of the SATA traffic are automatically displayed and synchronized below the capture signal or seen in protocol viewer. Generally, the 9000 and S-Series oscilloscopes are ideal for SATA 1.5 Gb/s.
