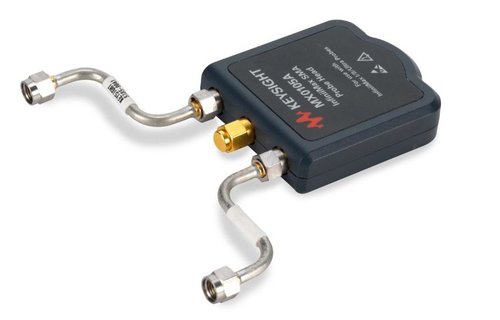

Keysight MX0105A InfiniiMax differential SMA probe head - 20 GHz
Key Features & Specifications
- 20 GHz bandwidth -- when used with InfiniiMax MX0023A probe amp
- Connect to SMA fixtured differential pairs
- Frees additional oscilloscope channels by using a single channel to measure differential signals
- Includes semi-rigid coax to change span between SMA connectors
- Allows for termination to a common DC voltage (± 4 V) rather than a ground
- Max input voltage =2.28 Vrms (Vin-Vcm_term)
The MX0105A is a differential SMA probe head that provides 20 GHz of bandwidth and allows you to connect two SMA cables to make differential measurements on an oscilloscope channel. The SMA head allows for termination to a common DC voltage (± 4 V) rather than a ground that would be required for signal standards such as HDMI and MIPI Mphy. The termination voltage is applied externally using the supplied cable and a DC power supply.
The MX0105A is a differential SMA probe head that provides 20 GHz of bandwidth and allows you to connect two SMA cables to make differential measurements on an oscilloscope channel. The SMA head allows for termination to a common DC voltage (± 4 V) rather than a ground that would be required for signal standards such as HDMI and MIPI Mphy. The termination voltage is applied externally using the supplied cable and a DC power supply.
