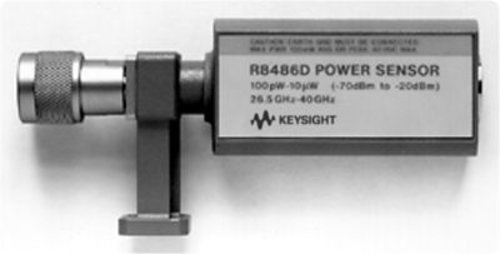

Keysight R8486D Waveguide Power Sensor, 26.5 to 40 GHz, -70 to -20 dBm
- Excellent SWR for reducing mismatch uncertainty
- 50 MHz calibration port
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
- Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
- Accurate average power measurements over -70 to -20 dBm
- Frequency range 26.5 GHz to 40 GHz
- Diode power sensing element
The R8486D diode waveguide power sensor measures average power over the frequency range 26.5 GHz to 40 GHz and power range -70 to -20 dBm (50 dB dynamic range).
The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the "D" suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
Can’t find what you’re looking for? Try our special options.
The R8486D diode waveguide power sensor measures average power over the frequency range 26.5 GHz to 40 GHz and power range -70 to -20 dBm (50 dB dynamic range).
The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the "D" suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
