Keysight W5300B PathWave RF Synthesis (Genesys)

Key Features and Functions

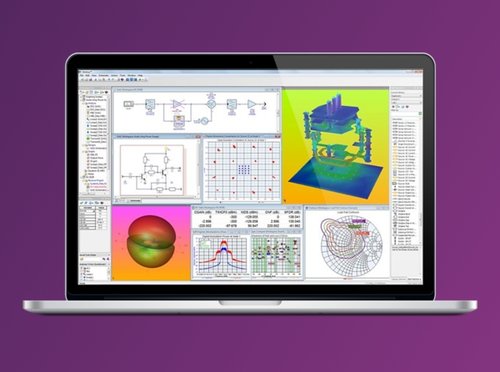

Analyze RF and microwave circuits and systems with fast simulation and powerful optimization tools. Explore performance trade-offs with automatic circuit synthesis technology. PathWave RF Synthesis (Genesys) provides entry-level functionality suitable for all RF and microwave circuit board and subsystem designers.

  • Simulate and build RF systems with real parts
  • Create high-performance circuits with synthesis models
  • Identify and fix circuit performance degradation
  • Convert ideal electrical designs to physical implementation
  • Automatically create custom filter topologies
  • Analyze, tune, and optimize designs with co-simulation

Documents and further Resources:

Product Number:

W5300B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick Delivery

AVOID COSTLY MISTAKES DOWNSTREAM

Identify RF design errors missed by traditional spreadsheet calculations with PathWave Circuit Design. With this entry-level design environment — including circuit, system, and electromagnetic simulators — you will gain confidence in your design reviews before hardware realization. Just a few mouse clicks and you can watch as your matching network is synthesized and optimized automatically. Then, transfer the design to PathWave Advanced Design System (ADS) for inclusion into a more complex design.

Find the bundle that is right for you

ModelBundleDescription
W5300BPathWave RF Synthesis (Genesys) Core
  • Easy-to-use design interface
  • Schematic capture, linear, and statistical simulators
  • Data display, optimizers, layout, Matlab scripting, and instrument links
W5301BPathWave RF Synthesis (Genesys) Core + Synthesis
  • Core + 12 automatic circuit synthesis tools
  • Core + RF system architecture simulation with root cause analysis
W5302BPathWave RF Synthesis (Genesys) Core + System
  • WhatIF frequency planning tool to instantly identify spurious-free bands from high- and low-side mixer configurations
W5303BPathWave RF Synthesis (Genesys) Core + Synthesis + Circuit
  • Core + Synthesis + nonlinear circuit simulators
  • Frequency-domain harmonic balance
  • Time-domain transient (Cayenne) simulators for amplifier, mixer, and oscillator designs
W5304BPathWave RF Synthesis (Genesys) Core + Synthesis + EM
  • Core + Synthesis + 3D planar EM simulator (Momentum)
W5305BPathWave RF Synthesis (Genesys) Core + Synthesis + Circuit + EM
  • Core + Synthesis + circuit simulators + 3D planar EM simulator
W5306BPathWave RF Synthesis (Genesys) Core + System + modulated RF
  • Core + system architecture + WhatIF frequency planning
  • Dataflow simulator (SystemVue engine) for modulated RF system analysis (EVM, ACPR, Constellation)
W5307BPathWave RF Synthesis (Genesys) Core + Synthesis + System + modulated RF
  • Core + Synthesis + System and WhatIF frequency planning + modulated RF system analysis
W5308BPathWave RF Synthesis (Genesys) Core + Synthesis + Circuit + System + modulated RF
  • Core + Synthesis + circuit simulators + System and WhatIF frequency planning + modulated RF system analysis
W5309BPathWave RF Synthesis (Genesys) Core + Synthesis + Circuit + System + modulated RF + EM
  • Synthesis + circuit, system, and EM simulators
