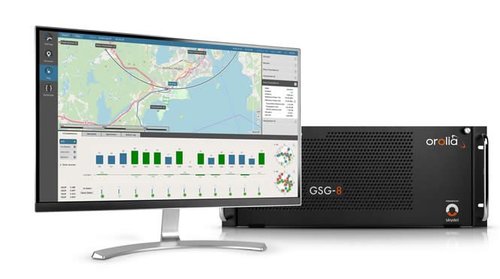

Safran-GSG-8 Advanced GNSS/GPS Simulator
Key Features and performance
- 1000Hz simulation iteration rate
- Low-latency HIL
- Live sky time synchronization
- On-the-fly scenario reconfiguration
- 6 Degrees of Freedom (DoF) receiver trajectories
- Flexible licensing
- In-field upgradability
- High-end performance (precision, resolution, ultra-high dynamic motion)
- Simulate hundreds of satellites in real time, using off-the-shelf graphics cards (GPU)
- Multi-vehicle simulation
- Comprehensive and intuitive API (Python, C# and C++ open source client)
- Scalable and highly flexible architecture using software-defined radios
Signals
- GPS: L1C, L1-C/A, L1-P, L2-P, L2C, L5
- GLONASS: G1, G2
- Galileo: E1, E5a, E5b, E5AltBOC
- BeiDou-2: B1, B2
- Beidou-3: B1C, B2a
- SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
Additional Documents:
GSG-8: Scientific Precision. Software Defined.
GSG-8 features high-end performance with a 1000 Hz simulation iteration rate, high dynamics, real-time synchronization, and simulation of all-in-view satellite signals. Advanced GNSS jamming and spoofing options allow the creation of benign and threat scenarios required to meet the needs of mission-critical applications. GSG- 8 is ideal for any development or integration project that requires sophisticated simulation capabilities in any simulated environment from any point on earth, and beyond.
GSG-8 supports multi-constellation, multi-frequency GNSS simulation and advanced threat scenarios, including jamming, spoofing and repeater simulation. Powered by our industry-leading Skydel simulation engine, GSG-8 can be programmed to simulate operations with all current and future GNSS signals. The ability to simulate multiple synchronized trajectories through multiple instances of the Skydel simulation engine allows testing of complex GNSS systems, such as:
- Differential GNSS, such as Real-time Kinematics (RTK)
- Receiver spoofing mitigation evaluation
- Multi-antenna vehicles
- Attitude measurements
- Simple or complex arrays of GNSS receivers
GSG-8 can also incorporate encrypted or proprietary signals with a comprehensive SDK, which allows signal generation of even the most sensitive signals.
GSG-8 is revolutionizing the GNSS simulation industry with its easy to use, advanced simulation capabilities, extraordinary flexibility and rapid development cycles. With a robust and innovative 1000Hz software engine and commercial-off-the-shelf (COTS) software-defined radios (SDRs), GSG-8 easily outperforms the competition. It can accommodate unlimited configurations to conduct system testing and simulation, and its SDR format makes maintenance and customization much easier and more affordable than other options. Trust GSG-8 to deliver precise results for your critical programs. Safran can help ensure reliable performance and accelerate your system’s time to market or deployment.
