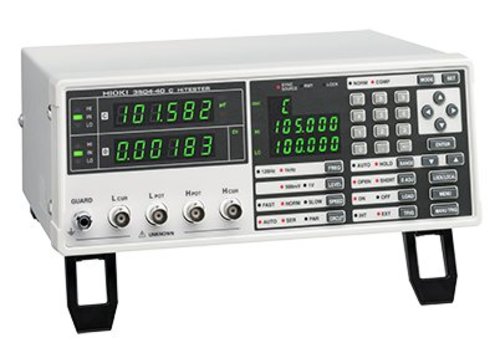

Hioki-3504-40 C HiTESTER
Dual-band 120Hz/1kHz Capacitance Meter for High Speed Inspection of Multi-Layer Ceramic Capacitors (MLCC) on Taping Machines
Key Features and Functions
- High speed measurement of 2ms
- Supports C measurements with voltage dependency characteristics through the use of constant voltage testing (CV)
- Model 3504-60 can detect contact failure on all 4 terminals for increased reliability
- BIN function on the 3504-60/-50 is ideal for sorting machines
- Model 3504-40 offers high speed and affordability, perfect for integrating into taping machines
- In all models, contact error is constantly monitored during measurement, contributing to increased yield
Stock
Call or email for delivery time
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3504 series are dual-band capacitance meters suited for large-capacitance MLCC inspections using a constant voltage.
Basic specifications
- Measurement parameters: C (capacitance), D (loss coefficient tan δ)
- Measurement range: C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999
- Basic accuracy: (Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
- Measurement frequency: 120 Hz, 1 kHz
- Measurement signal level:
- 100 mV (3504-60 only), 500 mV, 1 V rms
- CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
- CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
- CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz)
- Output impedance: 5Ω (In open terminal voltage mode outside of the CV measurement range)
- Display: LED (six digits, full scale count depends on measurement range)
- Measurement time: 2 ms (Typ. value. Depends on measurement configuration settings)
- Functions:
- 4-terminal contact check function (3504-60 only)
- BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection
- EXT. I/O: RS-232C, GP-IB (3504-50, 3504-60)
