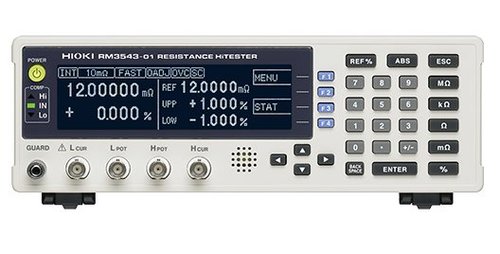

Hioki-RM3543 RESISTANCE HiTESTER

Resistance Meter for Ultra-low and Low Shunt Resistance

Key Features and Functions

  • Advanced enough to measure 0.1 mΩ shunts with room to spare at ±0.16% accuracy & 0.01μΩ resolution performance
  • Superb repeatable measurement accuracy
  • Advanced contact-check, comparator, and data export functions
  • Intuitive user interface and strong noise immunity are ideal for automated systems

Documents and Software:

Product Number:

Hioki-RM3543

Manufacturer:

Hioki

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3543 is designed to be integrated into current sensing resistor taping machines, deliver high-accuracy measurement of super-low-resistance levels, and are advanced enough to measure 0.1 mΩ shunts with room to spare.

Basic specifications

  • Measurement method: Four-terminal, constant-current DC
  • Resistance range: 10 mΩ (Max. 12.00000 mΩ, 0.01 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 7 steps
  • Display: Monochrome graphic LCD 240 × 64 dot, white LED backlight
  • Measurement accuracy:
    • [at 10 mΩ range, with SLOW mode, average 16 times settings]
    • ±0.060 % rdg. ±0.001 % f.s.
  • Testing current: [at 10 mΩ range] 1 A DC to [at 1000 Ω range] 1 mA DC
  • Open-terminal voltage: 20 V DC max. Note: Voltage when not measuring is 20 mV or less, with current mode set at PULSE and Contact Improver Setting set at OFF/PULSE (measured with a voltmeter having 10 MΩ)
  • Sampling rate: FAST, MEDIUM, SLOW, 3 settings
  • Integration time: [at 10 mΩ range, default value] FAST 2.0 ms, MED 5.0 ms, SLOW 1 PLC,
  • Setting range: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains wave-form period)
  • Other functions: Comparator (compare setting value with measurement value), Delay, OVC (offset voltage compensation), Average, Measurement fault detection, Probe short-circuit detection, Improve contact, Current mode setting (A pulse application function that applies current only during measurement), Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.
  • Interfaces: External I/O, RS-232C, Printer, GP-IB (Model RM3543-01)
  • External I/O: Trigger, Hold input, Comparator output, Settings monitor terminal, Service power output +5V, +12V, etc.
