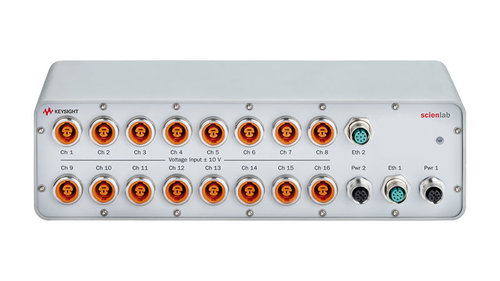

Keysight SL106XX Series Scienlab Measurement and Control Module
Highlights
The Scienlab SL106XX Series covers a wide range of test, measurement, and control tasks. If required, you can combine your measurement task and scope.
They are ideal for carrying out challenging measurement tasks, even under difficult environmental conditions; for example, a climate chamber. The modules offer top quality, robustness, and easy and intuitive operation.
Key Features:
- Precise, reproducible, and time-synchronous measurement data recording
- Fully electrically isolated measurement channels up to 1,000 V insulated between each channel
- Connection via open Ethernet interface; automatic detection of Scienlab Energy Storage Discover (ESD) software
- Individual combination of different measurement module types
Stock
Call or email for delivery time
High Performance for All Your Applications
The SL106XX Series has modules with analog measurement inputs for voltages, temperature sensors, and a digital I/O module for recording and switching digital signals.
- A communication interface enables the integration of various Fieldbus systems like CAN, FlexRay, or XCP
- The Measurement & Controle Module (MCM) Terminal Control provides adjustable voltage outputs for Scienlab Battery Management Systems (BMS) and device under test (DUT) power supply as well as floating relay contacts to simulate terminals 15, 30, and more
- Easy integration into the Scienlab Energy Storage Discover (ESD) or the customer's software
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
High Performance for All Your Applications
The SL106XX Series has modules with analog measurement inputs for voltages, temperature sensors, and a digital I/O module for recording and switching digital signals.
- A communication interface enables the integration of various Fieldbus systems like CAN, FlexRay, or XCP
- The Measurement & Controle Module (MCM) Terminal Control provides adjustable voltage outputs for Scienlab Battery Management Systems (BMS) and device under test (DUT) power supply as well as floating relay contacts to simulate terminals 15, 30, and more
- Easy integration into the Scienlab Energy Storage Discover (ESD) or the customer's software
