ADLINK PCIe-7360 32-CH 100MHz PCIe High-Speed DIO

Key Features

  • 8/16/24/32-CH at Max. 100MHz for DI or DO; 8/16-CH at Max. 200MHz for DI in external clock mode
  • 400 MB/s maximum throughput
  • Voltage level software selectable from 1.8 V, 2.5 V, and 3.3 V
  • 80-step phase shift in external clock mode
  • Per group (8-bit) input/output direction selectable
  • Support for I2C and SPI programmable serial interfaces for external device communication
  • Flexible handshake and external digital trigger modes
  • 8-channel auxiliary programmable I/O

Product Number:

ADLINK-PCIe-7360

Manufacturer:

ADLINK

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

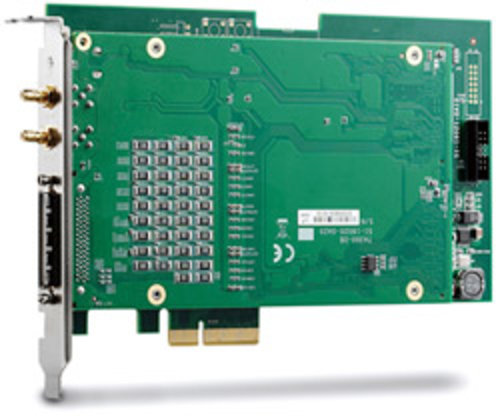

ADLINK's PCIe-7360 is a high-speed digital I/O board with 32-CH bi-directional parallel I/O lines. Data rate up to 400 MB/s is available through the x4 PCI Express® interface. Clock rate can support up to 100 MHz internal clock or 200 MHz external clock, ideally suiting applications of high-speed and large-scale digital data acquisition or exchange, such as digital image capture, video playback and IC testing.

I/O Port Configuration & Level Shifting
The PCIe-7360, in initial power-up status for onboard 32-channel I/O lines is input lines. The 32-channel I/O lines are bidirectional and can be divided into four groups, each carrying 8 channels and individually configurable as an input or output port. The PCIe-7360 also supports software selectable logic levels of 1.8 V, 2.5 V, and 3.3 V, with all four groups matching the chosen logic level. In digital output mode, the outputs are tri-stated when the digital output lines are disabled. The programmable I/O direction and logic levels provide a flexible interface for devices under test (DUT).

Maximum Data Transfer Rate
The PCIe-7360 can support up to 400 MB/s throughput along with a 32-bit data width at a maximum 100 MHz internal clock rate or 8/16-bit data width at a maximum 200 MHz external clock rate. The combination scatter-gather busmastering DMA, deep onboard 8 k-sample FIFO size, and x4 PCI Express® interface guarantee no data loss during sustained high-speed data processing.
