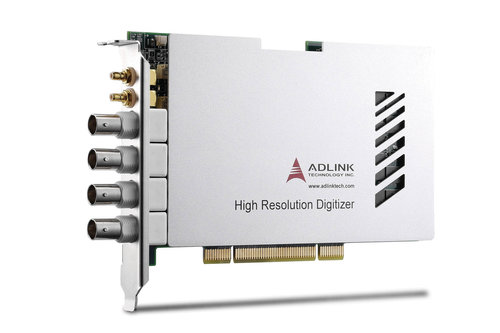

ADLINK PCI-9816H/512 High Resolution Digitizer,4CH 16-bit 10MS/s with 512MB SDRAM and ±5V, ±1V input range

Key Features

  • Standard height, half length PCI form factor
  • 4-CH simultaneous single-ended AI
  • 16-bit high resolution A/D converter
  • Up to 10MS/s, 20MS/s and 40MS/s per channel
  • 512MB on-board memory for data storage
  • Software selectable 50Ω or 1 MΩ input impedance
  • Programmable input voltage range: ±1 V, ±0.2 V and ±5V, ±1V
  • Multiple module synchronization via SSI

Product Number:

ADLINK-PCI-9816H_512

Manufacturer:

ADLINK

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The ADLINK PCI-9816/9826/9846 are 10MS/s, 20MS/s, 40MS/s sampling 16-bit 4-CH digitizers designed for digitizing high frequency and wide dynamic range signals with an input frequency up to 20 MHz. The analog input range can be programmed via software to ±1 V or ±0.2 V and ±5 V or ±1 V. With a deep onboard acquisition memory up to 512 MB, the PCI-9816/PCI-9826/PCI-9846 are not limited by the data transfer rate of the PCI bus to enable the recording of waveforms for extended periods of time. The PCI-9816/PCI-9826/PCI-9846 are equipped with four high linearity 16-bit A/D converters ideal for demanding applications with a high dynamic range such as radar, ultrasound, and software-defined radio.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

The ADLINK PCI-9816/9826/9846 are 10MS/s, 20MS/s, 40MS/s sampling 16-bit 4-CH digitizers designed for digitizing high frequency and wide dynamic range signals with an input frequency up to 20 MHz. The analog input range can be programmed via software to ±1 V or ±0.2 V and ±5 V or ±1 V. With a deep onboard acquisition memory up to 512 MB, the PCI-9816/PCI-9826/PCI-9846 are not limited by the data transfer rate of the PCI bus to enable the recording of waveforms for extended periods of time. The PCI-9816/PCI-9826/PCI-9846 are equipped with four high linearity 16-bit A/D converters ideal for demanding applications with a high dynamic range such as radar, ultrasound, and software-defined radio.
