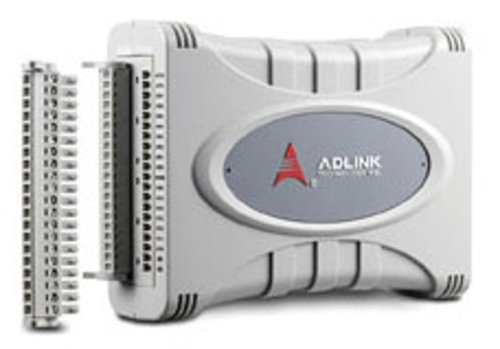

ADLINK-USB-1903 8-CH 16-Bit Current Input Multi-Function USB DAQ

additional images:

8/16-CH 16-Bit 250 kS/s Multi-Function USB DAQ Modules (OEM version available)

Features

  • USB 2.0 high-speed function, USB bus power
  • Removable screw-down terminal module
  • Lockable USB cable for secure connectivity
  • 16-CH 250 kS/s voltage input (USB-1901/1902); 8-CH 250 kS/s current input (USB-1903)
  • 2-CH 1 MS/s voltage output (USB-1902/1903)
  • Analog and Digital triggering
  • Ready-to-use testing application (U-Test) provided
  • Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)

Product Number:

ADLINK-USB-1903

Manufacturer:

ADLINK

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The ADLINK USB-1900 series provides a range of USB 2.0-based multi-functional DAQ modules. The USB-1901 and USB-1902 16-bit 250 kS/s USB 2.0-based high-performance DAQ modules allow four different voltage input ranges, while the USB-1903 features additional built-in precision current-tovoltage resistors capable of direct measurement of current signal from 0 to 20 mA. The USB-1900 series is USB bus powered and equipped with removable screw-down terminals for easy device connectivity. The attached multi-functional stand can be used for desktop, rail, or wall mounting. Suitable for mixed-signal tests, laboratory research, and factory automation, the USB-1900 series provide a simple measurement solution at an affordable price.

OS Information

  • Windows 7/8 x64/x86, Linux, and Mac

Software Compatibility

  • LabVIEW™
  • MATLAB®
  • C/C++
  • Visual BasiC, Visual Studio.NET

Software Recommendations

  • U-Test
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

The ADLINK USB-1900 series provides a range of USB 2.0-based multi-functional DAQ modules. The USB-1901 and USB-1902 16-bit 250 kS/s USB 2.0-based high-performance DAQ modules allow four different voltage input ranges, while the USB-1903 features additional built-in precision current-tovoltage resistors capable of direct measurement of current signal from 0 to 20 mA. The USB-1900 series is USB bus powered and equipped with removable screw-down terminals for easy device connectivity. The attached multi-functional stand can be used for desktop, rail, or wall mounting. Suitable for mixed-signal tests, laboratory research, and factory automation, the USB-1900 series provide a simple measurement solution at an affordable price.

OS Information

  • Windows 7/8 x64/x86, Linux, and Mac

Software Compatibility

  • LabVIEW™
  • MATLAB®
  • C/C++
  • Visual BasiC, Visual Studio.NET

Software Recommendations

  • U-Test
