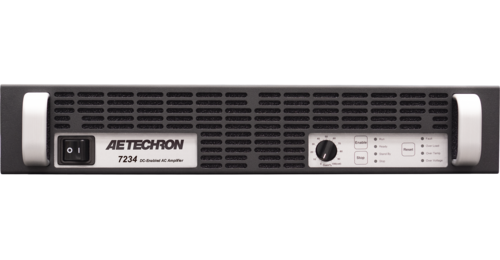

AE-TECHRON 7234 Single-phase, 2U, industrial amplifier/battery simulator
Key Features and Functions
- Up to 900 W RMS
- Up to 50 Ap - 158 Vp
- DC to 250 kHz
- Single-Phase
- Drop outs and surges as fast as 2µs
- Small signal response up to 700 kHz
- 13.5 VDC at up to 28A
- Field-selectable ±40V, 75V or 150V potential
- Bench-sized
- Powered from 120V/230VAC
- Source and Sink (4 quadrant)
- Rugged Design
- 3-Year, No-Fault Warranty
Documents and Software Solutions:
The 7234 is a capable, versatile, and reliable EMC lab partner.
This powerful amplifier/battery simulator provides up to 28A of long-term DC current with surges of up to 50A and can slew voltages at rates of up to 100V/µs.
It is load-tolerant, able to drive most inductive, capacitive, and resistive loads easily. The feature set of the 7234 allows it to meet or exceed the requirements of 1000+ Automotive and Aviation DC Conducted Susceptibility Standards Tests.
The 7234 is light enough to be hand-carried from one test location to another, rugged enough to tolerate being bounced around on a cart, and able to be powered from standard 120V/230V AC wall power. These features, along with the 7234s powerful performance, make it possible to turn virtually any bench or desk into a competent test location.
