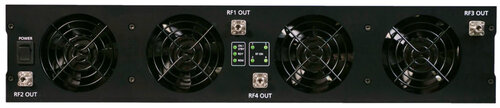

Keysight AP5032A G5 Analog signal generator, up to 51 GHz, up to 4 channels
Key Features and Functions
The Keysight AP5032A analog signal generator combines multi-channel options with ultra-low phase noise and ultra-fast switching speed to set new standards for RF and microwave testing.
- Choose from 1-, 2-, 3- or 4 independently controllable, and phase coherent, channels
- Improve test accuracy with extremely good phase noise (-135 dBc/Hz typ. at 10 GHz, 10 kHz offset).
- Create agile signals with switching speed as fast as 3 µs (typ)
- Low profile 2U rack height chassis
- Test with AM, FM, PM and pulse modulation
- Achieve excellent frequency accuracy with high-stability OCXO reference
- Get access to a range of external references, including 10 MHz and 100 MHz, for higher phase synchronization.
- Use high-frequency clock ports to get excellent phase synchronization among multiple instruments.
- Leverage USB, LAN, or GPIB communication interface options
- implement control seamlessly with a customer-supplied application programming interface
Additional documentation:
Highlights
Ultra-high performance multi-channel analog signal generator
The AP5032A analog signal generator offers ultra-low phase noise and ultra-fast switching speed in a 1-, 2-, 3-, or 4-channel instrument with frequency ranges from 1 kHz to 12.75, 20, 40, or 51 GHz. Generator channels are independently controllable and locked to a single reference source for high phase coherence. Excellent signal purity and agility, combined with multiple, phase coherent channels and analog modulation capabilties make the AP5032A an valuable addition to your lab. Use it for a range of applications in R&D, aerospace and defense (e.g. RADAR), beamforming, production test and more.
Highlights
Ultra-high performance multi-channel analog signal generator
The AP5032A analog signal generator offers ultra-low phase noise and ultra-fast switching speed in a 1-, 2-, 3-, or 4-channel instrument with frequency ranges from 1 kHz to 12.75, 20, 40, or 51 GHz. Generator channels are independently controllable and locked to a single reference source for high phase coherence. Excellent signal purity and agility, combined with multiple, phase coherent channels and analog modulation capabilties make the AP5032A an valuable addition to your lab. Use it for a range of applications in R&D, aerospace and defense (e.g. RADAR), beamforming, production test and more.
