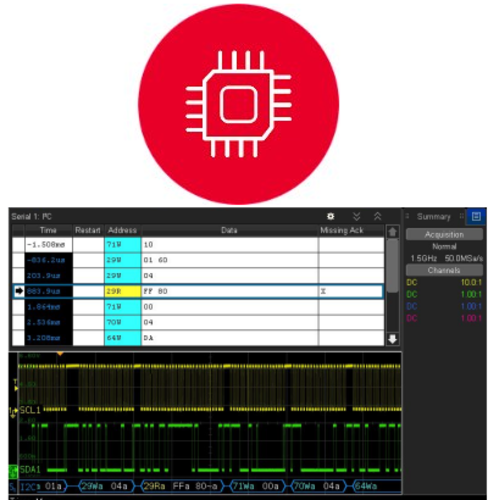

Keysight D4000GENB Embedded Analysis Software for 4000 X-Series

Key Features & Specifications

  • The fastest throughput oscilloscope solution for triggering on and analyzing I²C, SPI, RS232/422/485/UART, I²S, and USB PD serial buses
  • Multiple bus decode and protocol lister/table display
  • Perform 2-wire, 3-wire and 4-wire SPI serial protocol trigger and analysis
  • On-screen serial decode time-correlated with the serial data waveforms
  • This package enables I²C, SPI, RS232/422/485/UART, I²S, and USB PD serial trigger and decode, mask limit testing, frequency response analysis (bode plot), and enhanced HDTV video testing. Advanced math already comes standard on all 4000 X-Series oscilloscopes

Product Number:

D4000GENB

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick Delivery

Description

The embedded software package for Keysight’s InfiniiVision 4000 X-Series oscilloscopes enables protocol triggering and decode for a broad range of the most common serial buses used today for embedded and mixed-signal designs. This package also enables other advanced analysis capabilities including mask testing and frequency response analysis to help test today’s electronic designs.
