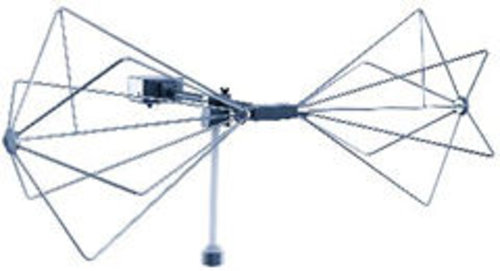

ETS-3104C Biconical Antenna (20 - 200 MHz)

  • Compact Size for Use in Limited Space
  • Quality Construction for Trouble-Free Service
  • Quality Construction for Trouble-Free Service
  • Unique Element Design Improves Performance
  • Power Handling Capability Up to 100 W
  • Improved Balun Design for Increased Efficiency

Electrical Specifications

  • Frequency Minimum 20 MHz
  • Frequency Maximum 200 MHz
  • Connectors Type N (f)
  • FS-600 High Performance Hybrid Ferrite Tile Polyurethane Dielectric 200 MHz
  • Impedance (Nominal) 50 ?
  • Maximum Continuous Power 50 W
  • Pattern Type omnidirectional
  • Peak Power 100 W
  • Polarization linear
  • VSWR 2.8:1

Physical Specifications

  • Depth 81.3 cm
  • Diameter 52 cm
  • Weight 2.7 kg
  • Width 143.5 cm

Specifications

  • Expanded Uncertainty Values for Antenna Factors: ANSI C63.5 10M 20-30 MHz +/- 1.0 dB, 30-200 MHz +/ 0.9 dB
  • Expanded Uncertainty Values for Antenna Factors: ANSI C63.5 3M 20-30 MHz +/- 0.9 dB, 30-200 MHz +/ 0.9 dB
  • Expanded Uncertainty Values for Antenna Factors: SAE, ARP 958 1M

Product Number:

ETS-3104C

Manufacturer:

ETS-Lindgren

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
Model 3104C Biconical Antenna may be used for radiating immunity measurements provided that the input power is limited to no more than 100 W peak.ETS-Lindgren is the only manufacturer to offer optional extended elements. These elements are twice as long as standard elements and enable users to generate high fields at low frequencies with less than 25% of the power usually required.
