ETS-3106B Double-Ridged Guide Antenna (200 MHz - 2.5 GHz)
- Two Year Warranty
- Uniform Gain
- Low VSWR
- Individually Calibrated
- Power Handling Capability - 1.6 kW
Electrical Specifications
- Frequency Minimum 200 MHz
- Frequency Maximum 2.5 GHz
- Connectors Type N (f)
- Impedance (Nominal) 50 ohm
- Maximum Continuous Power 800 W
- Pattern Type directional
- Peak Power 1600 W
- Polarization linear
- VSWR <1.6:1
Physical Specifications:
- Height 72.9 cm
- Length 97.8 cm
- Weight 11.8 kg
- Width 93.3 cm
Specifications
- Expanded Uncertainty Values for Antenna Factors: SAE, ARP 958 1M 0.2-1.9 GHz+/- 1.0 dB
- 1.9-2.0 GHz +/- 1.3 dB
Stock
Call or email for delivery time

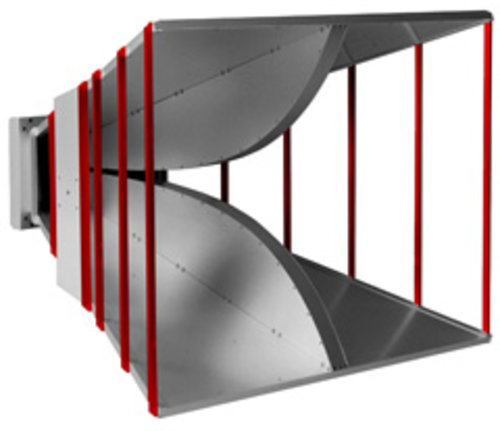

The Model 3106B Double-Ridged Waveguide Horn has a high gain and excellent VSWR characteristics over its entire frequency range. It is especially effective for generating high electromagnetic fields with relatively low power input. The antenna is also useful for receiving low-level signals where high gain characteristics are needed. Although large in size, 93.3 cm (36.7 in), this antenna weighs only 11.8 kg (26 lb). A Type N female connector is used for increased power handling.The Model 3106B Double-Ridged Waveguide Horn has uniform gain through its frequency span, providing efficient performance characteristics and directionality. It can handle 1600 W peak and 800 W continuously.Constructed of light-weight corrosion-resistant aluminum, the 3106B Double-Ridged Waveguide Horn will provide years of trouble-free indoor and outdoor service.
