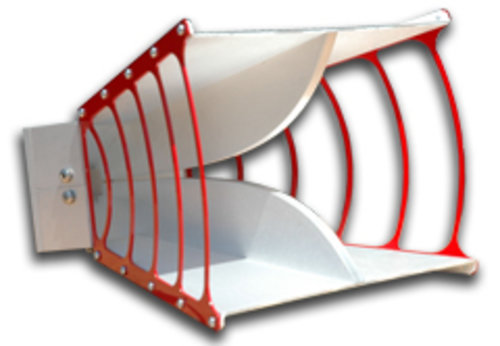

ETS-3115 Double-Ridged Guide Antenna (750 MHz - 18 GHz)
Ultra Broadband
- 750 MHz to 18 GHz Frequency Range
- 500 W Power Input Capacity
- Optimized High Frequency Gain
- Low VSWR
Electrical Specifications
- Frequency Minimum 750 MHz
- Frequency Maximum 18 GHz
- Connectors Type N
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 500 W @ 800 MHz to 1 GHz W
- Pattern Type directional
- Polarization linear
- VSWR 5:1 Maximum, <2:1 Above 800 MHz
Physical Specifications
- Depth 27.9 cm
- Height 15.9 cm
- Weight 1.8 kg
- Width 24.4 cm
Stock
Call or email for delivery time
ETS-Lindgrens Model 3115 Double-ridged Waveguide Horn has been an industry standard for many years. Now this classic has been given an updated appearance while keeping its performance characteristics the same. The 3115 sweeps from 750 MHz to 18 GHz without stopping band breaks, making it ideal for automated testing. Additionally, the 3115 has the widest usable frequency range in its class.The Model 3115 is constructed to be a rugged antenna that thrives in an environment of constant use. This antenna includes a 1/4 inch 20 tripod mount.ApplicationsFCC-15 (RE)FCC-18 (RE)IEC/CISPR/EN (RE, RI)SAE J1113 (RE, RI)SAE J551 (RE, RI)MIL-STD-461E (RE, RI)MIL-STD-285 (TX, RX)NACSIM (RE)
