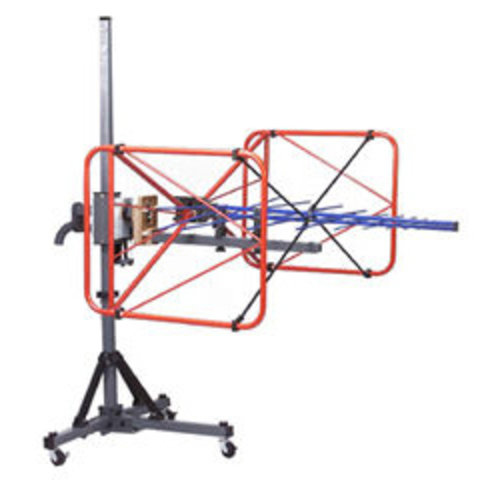

ETS-3140B Hybrid Log Periodic and Bowtie (BiConiLog) (26 MHz - 6 GHz)
- 26 MHz - 3 GHz Frequency Range
- Two Year Warranty
- Fits Compact Chambers
- Tough powder coat finish
- Avg. 2:1 VSWR Above 80 MHz
- Best EMC RI Performance from
- 26 MHz - 80 MHz<=300 W to generate 10 V/m
- Above 30 MHz at 3m, 80% AM
Electrical Specifications
- Frequency Minimum 26 MHz
- Frequency Maximum 3 GHz
- Connectors Type N
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 1 kW
- Pattern Type directional
- Peak Power 1.3 kW
- Polarization linear
- VSWR 2.0:1
Physical Specifications
- Height 76.65 cm
- Length 149.3 cm
- Weight 10 kg
- Width 161.5 cm
Stock
Call or email for delivery time
The new Model 3140B BiConiLog features a patent-pending T-Bow-Tie element design that significantly improves low frequency performance compared to conventional biconical or other hybrid antennas. When setting up the model 3140B, the T-Bow-Tie elements are easily attached/detached with hand tightened screw knobs. Once assembled, the antenna is self-standing when placed balun end down on the ground plane - Convenient during mounting. A tough powder coat finish protects the antenna and adds to its appeal.The Model 3140B BiConiLog is not designed to be used for RE (Radiated Emissions) measurements. For RE applications, ETS-Lindgren recommends the Model 3142D with end cap elements removed.
