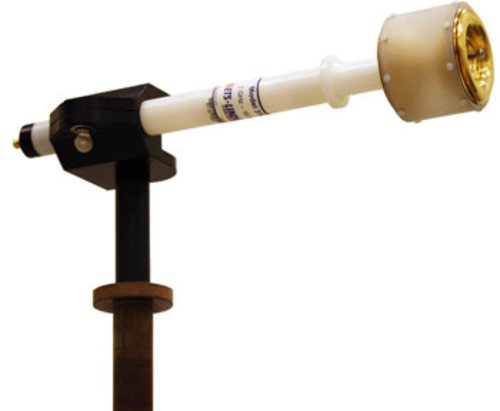

ETS-3183 Broadband Mini-Bicon Antenna (1 - 18 GHz)
1 GHz - 18 GHz Frequency Range
Radiation Pattern Conforms to CISPR 16 Specifications
Ideal for:
- Chamber Characterization
- Broadband Spectrum Monitoring
Electrical Specifications
- Frequency Minimum 1 GHz
- Frequency Maximum 18 GHz
- Pattern Type Omnidirectional
- Polarization Linear
- VSWR Ratio (AVG) 2:1
- Maximum Continuous Power 50 watts @ 1GHz
- 25 watts @ 18 GHz
- Impedance (Nominal) 50 ?
- Connectors SMA (F)
Physical Specifications
- Length 36.2 cm
- Width 15.25 cm
- Stinger Length 17.8 cm
- Weight 0.7 kg
Stock
Call or email for delivery time
The 3183 antenna has a broadband frequency range of 1 GHz - 18 GHz. Its omnidirectional pattern conforms to CISPR 16 specifications.The broadband frequency range also covers most wireless bands worldwide. This allows the antenna to be used for surveying or spectrum monitoring, when used with a portable spectrum analyzer.A weatherizing kit is standard on the Model 3183 for outdoor monitoring.FEATURESFrequency RangeThe Model 3183 is designed to have the lowest possible VSWR across its range of operation. The antenna exhibits an average 2:1 VSWR.Radiation PatternThe radiation pattern of the Model 3183 is omnidirectional in the H-plane. This means the antenna can receive signals from every direction around its axis.CISPR-16 ConformanceThe radiation pattern closely conforms to the CISPR 16 requirements for chamber validation. Because of its small size, the antenna can also be used for amplifier harmonic measurements when performing tests per the IEC 61000-4-3.Spectrum MonitoringThe Model 3183 can be used for EM Field surveying and spectrum monitoring. The low weight design allows use as a field surveying tool, in conjunction with a portable spectrum analyzer.
