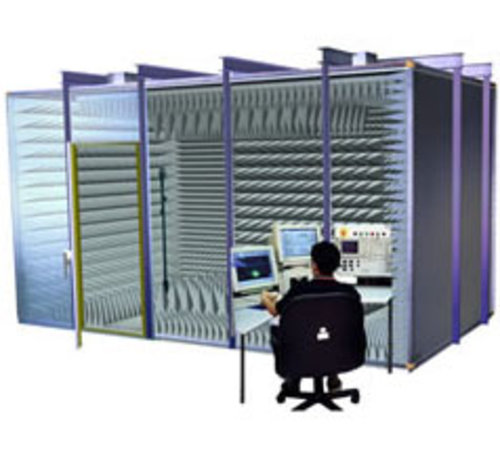

ETS-AMS-8100 Antenna Measurement System

800 MHz - 6 GHz Frequency RangeModular High Performance Shielded SystemElectrical SpecificationsFrequency Minimum 800 MHz Frequency Maximum 6 GHz Physical SpecificationsInternal Working Area (L) 4.3 m (14.11 ft) Internal Working Area (W) 2.6 m (8.53 ft) Internal Working Area (H) 2.6 m (8.53 ft) SpecificationsAnechoic Chamber Quiet Zone Volume: 1 ft (30 cm) diameter sphere Anechoic Parameters Path Length is approximately 10 ft (3.0 m) Chamber Shielding Electric: 100 dB from 200 kHz through 50 MHz Magnetic: 20 dB at 1 kHz, increasing to 56 dB at 10 kHz and increasing to 100 dB at 200 kHz Microwave: 100 dB from 1 GHz to 10 GHz Plane Wave: 100 dB from 50 MHz to 1 GHz

Product Number:

ETS-AMS-8100

Manufacturer:

ETS-Lindgren

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The rectangular chamber is designed to measure low directivity antennas over the frequency range of 800 MHz - 6GHz. The operating frequencies can be extended to higher frequencies if required.These wireless test labs can be configured with software controller, multi-axis positioners, a variety of antennas, and other test equipment available from ETS-Lindgren.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item
The rectangular chamber is designed to measure low directivity antennas over the frequency range of 800 MHz - 6GHz. The operating frequencies can be extended to higher frequencies if required.These wireless test labs can be configured with software controller, multi-axis positioners, a variety of antennas, and other test equipment available from ETS-Lindgren.
