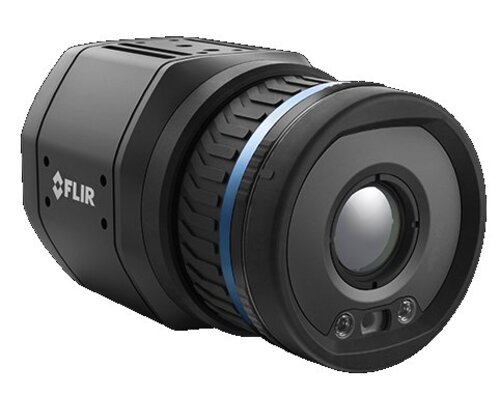

FLIR A400 R&D Kit with 14° Lens (including Research Studio Perpetual license)
Key features
- Accuracy: ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C, object temperature above 0°C
- Detector Type: Uncooled microbolometer
- Dynamic Range: 16-bit
- Field of view (FOV): 24° × 18°
- IR Resolution: 320 × 240 pixels
- Standard Temperature Range: -20°C to 120°C; 0°C to 650°C; 300°C to 1500°C
- Available Lenses: 2.x Macro, 6°, 14°, 42°
- Digital Data Streaming to PC: Gigabit Ethernet (RTSP, GigE Vision) to workstation running included Research Studio Software
- Focus: One-shot contrast, motorized, manual
- Frame Rate: 30 Hz
- Size [L x W x H ] w Lens: 123 × 77 × 77 mm
Documents and Software Solutions:
FLIR A400, A500, and A700 R&D and Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software.
Based on FLIR’s A400 and A700 Image Streaming cameras, the Standard Kit offers a selection between a 14, 24, 42, 80° or dual lens with automatic/remote and manual focusing. The Professional Kit includes a 24° lens in addition to a macro lens. It also has the added benefits of MSX® image enhancement, to better distinguish between components on your test target; radiometric data transmission over Wi-Fi, so you can cut the cord between camera and workstation; and a close-up lens for accurate thermal measurements on small components.
SIMPLIFIED ANALYSIS & COLLABORATION
FLIR Research Studio’s simple Connect - View - Record - Analyze workflow helps you obtain and analyze thermal results quickly
ACCURACY YOU CAN COUNT ON
Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement
UNMATCHED CONNECTIVITY
Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)
FLIR A400, A500, and A700 R&D and Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software.
Based on FLIR’s A400 and A700 Image Streaming cameras, the Standard Kit offers a selection between a 14, 24, 42, 80° or dual lens with automatic/remote and manual focusing. The Professional Kit includes a 24° lens in addition to a macro lens. It also has the added benefits of MSX® image enhancement, to better distinguish between components on your test target; radiometric data transmission over Wi-Fi, so you can cut the cord between camera and workstation; and a close-up lens for accurate thermal measurements on small components.
SIMPLIFIED ANALYSIS & COLLABORATION
FLIR Research Studio’s simple Connect - View - Record - Analyze workflow helps you obtain and analyze thermal results quickly
ACCURACY YOU CAN COUNT ON
Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement
UNMATCHED CONNECTIVITY
Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)
