Key Features and Functions
- 6 1/2 Digit Display: 2,399,999 Counts max.
- 4.3 TFT Graphic LCD
- DC voltage measurement up to 2400 V
- DCV Basic Accuracy:0.01%
- The fastest sampling rate:10k Readings/sec
- USB Storage function available
- Graphic display capability, providing histogram, bar meter and trend chart
- Standard interfaces : Digital I/O, RS-232C, USB Host/Device, LAN
- Option interface : GPIB
Documents and Software Solutions:

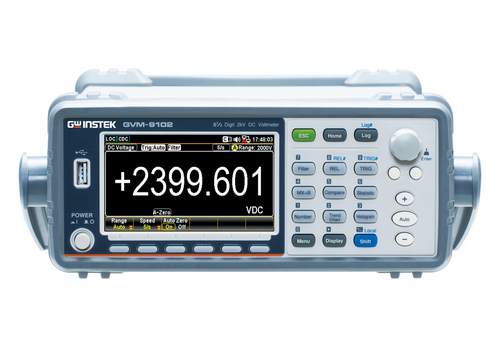

The GVM-9102 6 ½ digit 2 kV Voltmeter, features high precision DC voltage accuracy, fast sampling rate, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy, making it particularly suitable for output measurement of energy storage devices, photovoltaic devices or DC power supply devices.
The GVM-9102 provides DC voltage measurement up to 2400 V without the need for attenuators, effectively reducing measurement losses and errors. In addition, the GVM-9012 also features math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV) and various standard communication interfaces. Whether operated as a desktop or installed in a system, the GVM-9102 can meet specific measurement requirements and complex measurement applications.
The GVM-9102 6 ½ digit 2 kV Voltmeter, features high precision DC voltage accuracy, fast sampling rate, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy, making it particularly suitable for output measurement of energy storage devices, photovoltaic devices or DC power supply devices.
The GVM-9102 provides DC voltage measurement up to 2400 V without the need for attenuators, effectively reducing measurement losses and errors. In addition, the GVM-9012 also features math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV) and various standard communication interfaces. Whether operated as a desktop or installed in a system, the GVM-9102 can meet specific measurement requirements and complex measurement applications.
