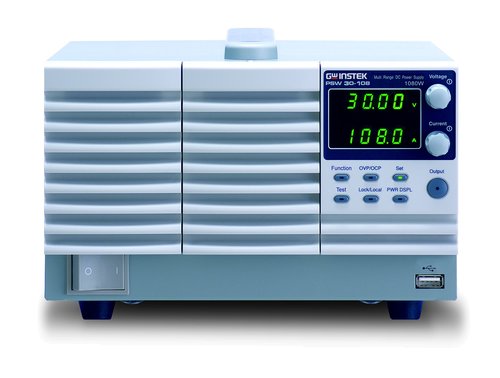

GW-INSTEK PSW30-108 1080 W Multi-Range Programmable Switching D.C. Power Supply

Key Features and Functions

  • Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W
  • Constant Power Output for Multiple Range (V&I) Operation
  • CV/CC Priority; Particularly Suitable for the Battery and LED Industry
  • Adjustable Slew Rate
  • Series Operation: Up to 2 units (30V, 40V, 80V, 160V models only)
  • Parallel Operation: Up to 3 units
  • High Efficiency and High Power Density
  • 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
  • Standard Interface: LAN,USB,Analog Control Interface
  • Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
  • LabView Driver

Documents and Software Solutions:

Price

kr 24.576*
* excluding VAT plus shipping

Product Number:

GW-PSW30-108

Manufacturer:

GW-INSTEK

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick Delivery

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include fifteen models with the combination of 30V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.

Channel Configuration:

ModelVoltageCurrentPower
GW-PSW30-10830V36A360W
GW-PSW30-3630V72A720W
GW-PSW30-7230V108A1080W
GW-PSW80-13.580V13.5A360W
GW-PSW80-2780V27A720W
GW-PSW80-40.580V40.5A1080W
GW-PSW160-14.4160V7.2A360W
GW-PSW160-21.6160V14.4A720W
GW-PSW160-7.2160V21.6A1080W
GW-PSW250-13.5250V4.5A360W
GW-PSW250-4.5250V9A720W
GW-PSW250-9250V13.5A1080W
GW-PSW800-1.44800V1.44A360W
GW-PSW800-2.88800V2.88A720W
GW-PSW800-4.32800V4.32A1080W
