Keysight HD300AUTA Automotive software package CAN, CAN FD, CAN XL (symbolic with .dbc file), and LIN (symbolic with .ldf file)
The automotive software package for the Keysight InfiniiVision HD3 Series oscilloscopes enables protocol triggering and decoding for a broad range of the most common automotive serial buses used today for power train and body control and monitoring. Use this package in combination with the standard advanced analysis on the HD3, including mask testing and frequency response analysis, to help test and debug automotive electronic systems.
Key Features and Functions
- This package enables CAN, CAN FD, CAN XL, LIN, and SENT for the Keysight InfiniiVision HD3 Series oscilloscopes.
- The software enables users to trigger on and decode the CAN, CAN FD, CAN XL, LIN, and SENT buses symbolically with a .dbc or .ldf file.
- The package includes standard advanced math, mask testing (detailed pass / fail statistics), and frequency response analysis (Bode plot).
- It provides the fastest throughput oscilloscope solution for triggering on and analyzing automotive serial buses using hardware-based architecture.

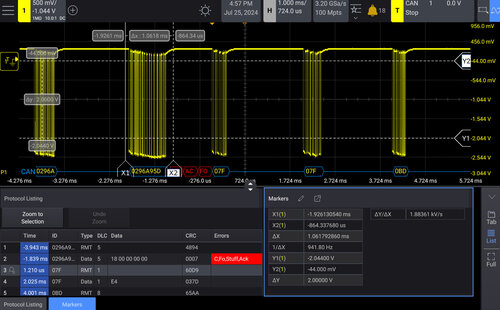

- The oscilloscope includes on-screen serial decode time correlated with the serial data waveform.
